Description:The 8343-01 is a low skew, 1-to-16 LVCMOS/ LVTTL Fanout Buffer and a member of the family of High Performance Clock Solutions from IDT. The 8343-01 single ended clock input accepts LVCMOS or LVTTL input levels. The 8343-01 operates at 3.3V, 2.5V and mixed 3.3V input and 2.5V supply modes over the commercial temperature range. Guaranteed output and part-to-part skew characteristics make the 8343-01 ideal for those clock distribution applications demanding well defined performance and repeatability.
Renesas provides a recommended PCB layout guide in their application note (R01AN0265EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends following their thermal design guidelines, using a heat sink if necessary, and ensuring proper airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature.
Renesas recommends a ceramic capacitor with a capacitance of 10uF to 22uF, an ESR of less than 100mΩ, and a voltage rating of at least 25V. The specific requirements may vary depending on the application and operating conditions.
Renesas provides a troubleshooting guide in their application note (R01AN0265EJ0100) which includes steps to identify and resolve common issues, such as checking the PCB layout, component values, and input/output connections.
Operating the device at a lower input voltage may affect its performance, efficiency, and stability. Renesas recommends consulting their application note (R01AN0265EJ0100) for specific guidance on operating the device at lower input voltages.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8343AY-01LF Overview

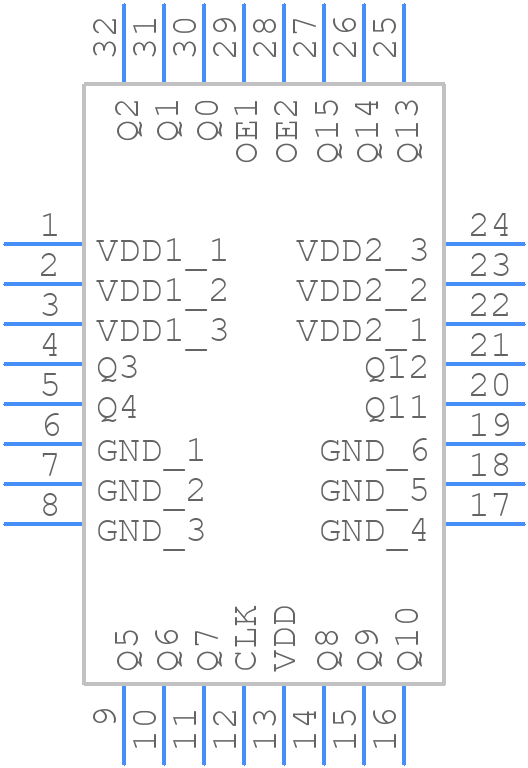

Use the download button to access the 8343AY-01LF schematic symbol and PCB footprint.
