83612-9024 - Molex

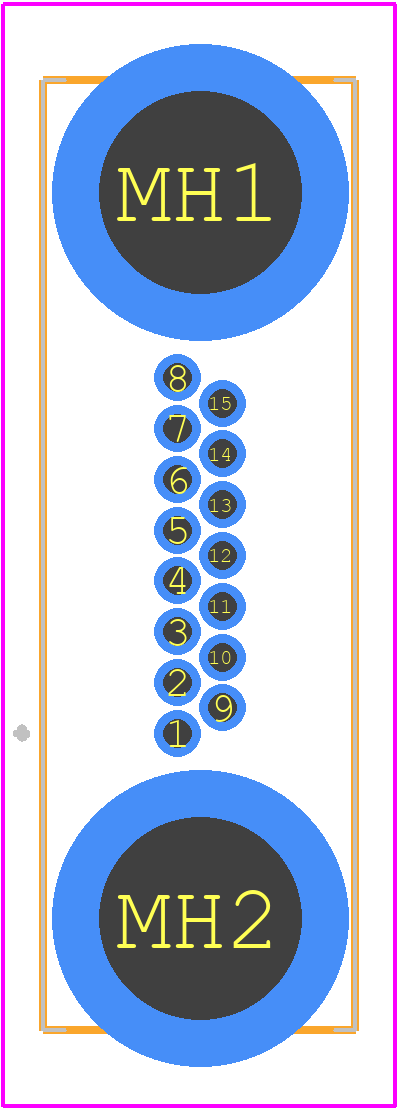

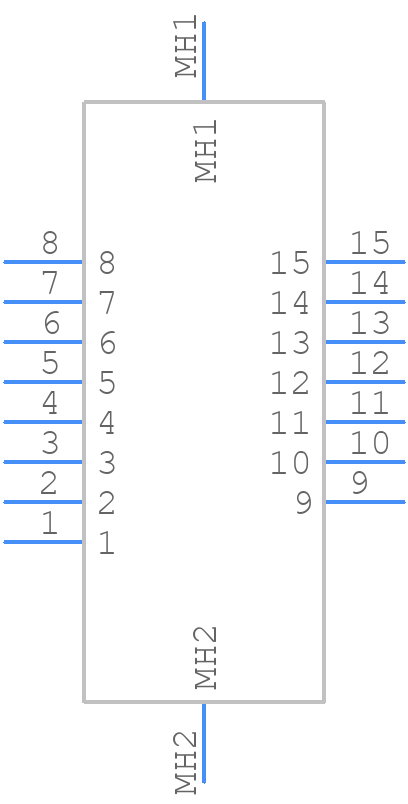

83612-9024 Details

• Manufacturer Part Number:

  83612-9024

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  Molex

• Body Breadth:

  0.307 inch

• Body Depth:

  0.31 inch

• Body Length:

  0.935 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D MICROMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD (15) OVER NICKEL

• Contact Finish Termination:

  GOLD (15) OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  BERYLLIUM COPPER

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  8 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .834 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Manufacturer Series:

  83612

• Mixed Contacts:

  NO

• Mounting Option 1:

  #2-56

• Mounting Option 2:

  JACKPOST

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.27 mm

• Plating Thickness:

  15u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL, CSA

• Reliability:

  COMMERCIAL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  B

• Subcategory:

  D Type Connectors

• Terminal Length:

  0.211 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .139 N
