83619-9011 - Molex

Description: D-Sub Micro-D Connectors CMD RA DUAL STACK 25 K 25/30 CIR W/JKPOST

Download 83619-9011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

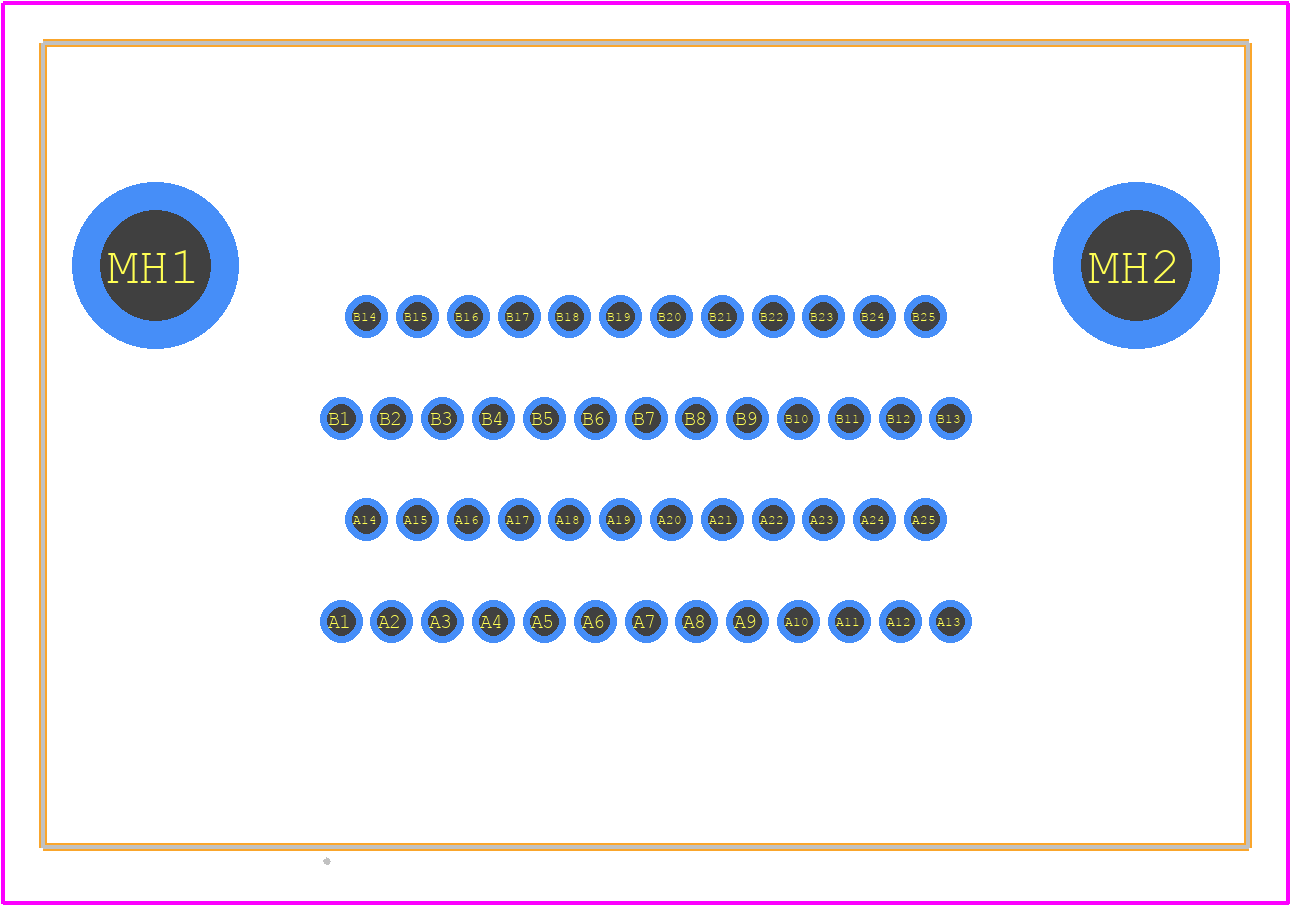

83619-9011 - Molex PCB footprint - Other - Other - 83619-9011-1
click to zoom
3D Models
83619-9011 - Molex  - 3D model - Other - 83619-9011-1
click to zoom

83619-9011 Details

  • Manufacturer Part Number:

    83619-9011

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan, USA

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8.57

  • Additional Feature:

    OTHER STACKING CONNECTOR: 25 CONTACTS, PANEL MOUNTABLE

  • Body Breadth:

    0.744 inch

  • Body Depth:

    0.607 inch

  • Body Length:

    1.183 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D MICROMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    600VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2+2

  • Number of Rows Loaded:

    2+2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    D

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0
