83940BYLF - Renesas Electronics

Description: The 83940 is a low skew, 1-to-18 LVPECL-to-LVCMOS/ LVTTL Fanout Buffer. The 83940 has twoselectable clock inputs. The PCLK, nPCLK pair can accept LVPECL, CML, or SSTL input levels. The LVCMOS_CLK can accept LVCMOS or LVTTL input levels. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines. The 83940 is characterized at full 3.3V, full 2.5V and mixed 3.3V input and 2.5V output operating supply modes. Guaranteed output and part-to-part skew characte

Download 83940BYLF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 83940BYLF model

Email notifications will be applied after download.

Send part feedback

Symbol

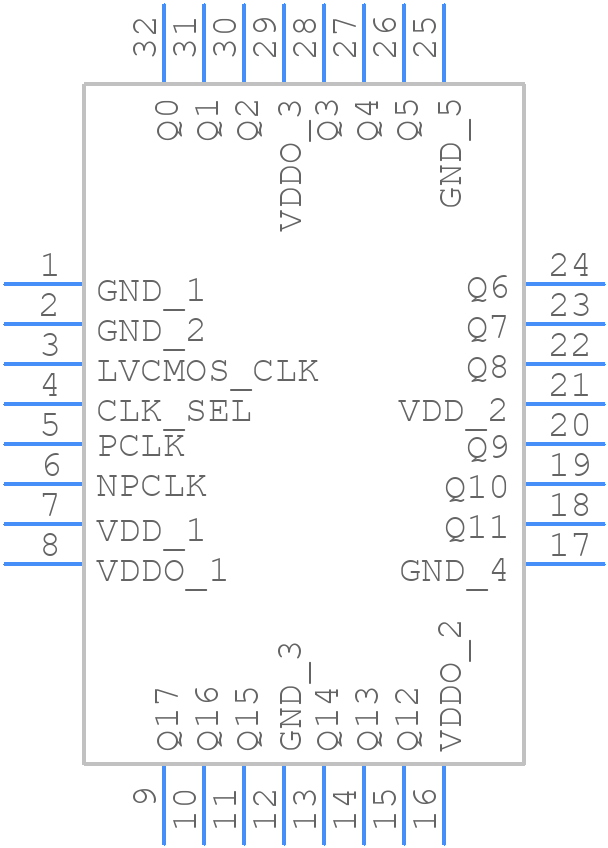

83940BYLF - Renesas Electronics - PCB symbol
