83940DYI-01LF - Renesas Electronics

Description: The 83940I-01 is a low skew, 1-to-18 LVPECL-to-LVCMOS/ LVTTL Fanout Buffer. The 83940I-01 has two selectable clock inputs. The PCLK, nPCLK pair can accept LVPECL or SSTL input levels. The single-ended clock input accepts LVCMOS or LVTTL input levels. The 83940I-01 is characterized at full 3.3V, full 2.5V and mixed 3.3V input and 2.5V output operating supply modes. Guaranteed output and part-to-part skew characteristics make the 83940I-01 ideal for those clock distribution applications demanding well defined

Download 83940DYI-01LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

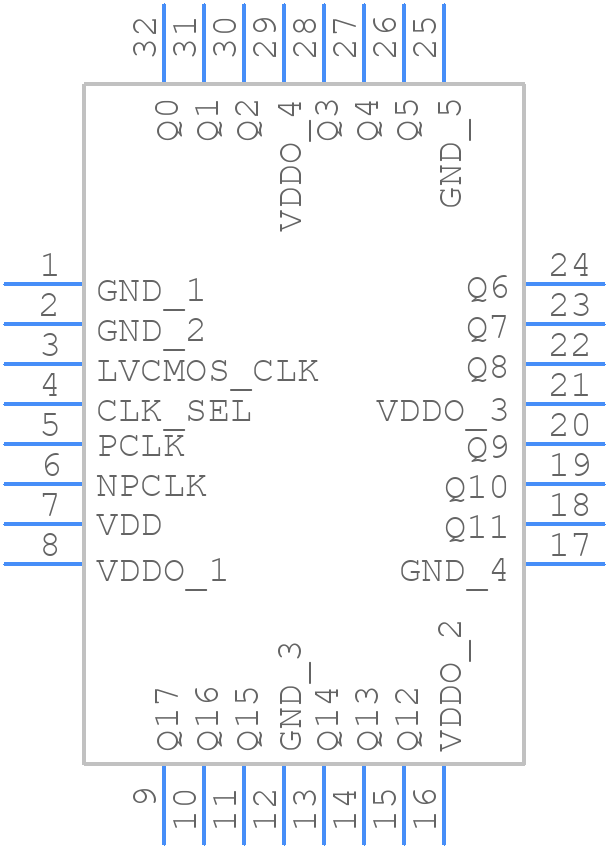

83940DYI-01LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
83940DYI-01LF - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-pin TQFP
click to zoom
3D Models
83940DYI-01LF - Renesas Electronics - 3D model - Quad Flat Packages - 32-pin TQFP
click to zoom

83940DYI-01LF Details

  • Manufacturer Part Number:

    83940DYI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    PRG32

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

83940DYI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4301EU0101) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN4301EU0101) to ensure proper device operation. This includes powering up the VCC and VDD pins in a specific order and within a certain time frame.
  • Renesas recommends using high-frequency, low-ESR capacitors (e.g., 100nF, 1uF, and 10uF) with a voltage rating of 2.5V or higher, placed as close as possible to the device's power pins.
  • Renesas provides an I2C troubleshooting guide in their application note (R01AN4301EU0101) which includes steps to verify the I2C bus configuration, clock frequency, and data transmission.
  • The 83940DYI-01LF is rated for operation from -40°C to +125°C (junction temperature), but the recommended operating temperature range is -20°C to +85°C for optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

83940DYI-01LF Overview

Use the download button to access the 83940DYI-01LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 83940, or try a keyword search, such as Clock Drivers
