840-AG11D-ESL footprint, schematic symbol and 3D model by TE Connectivity

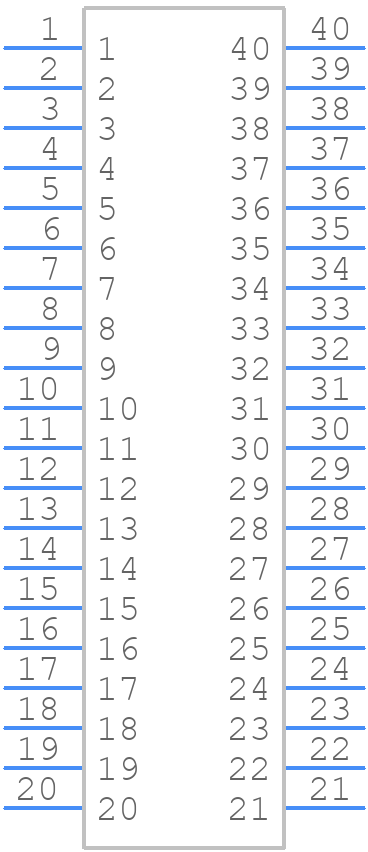

Symbol

click to zoom

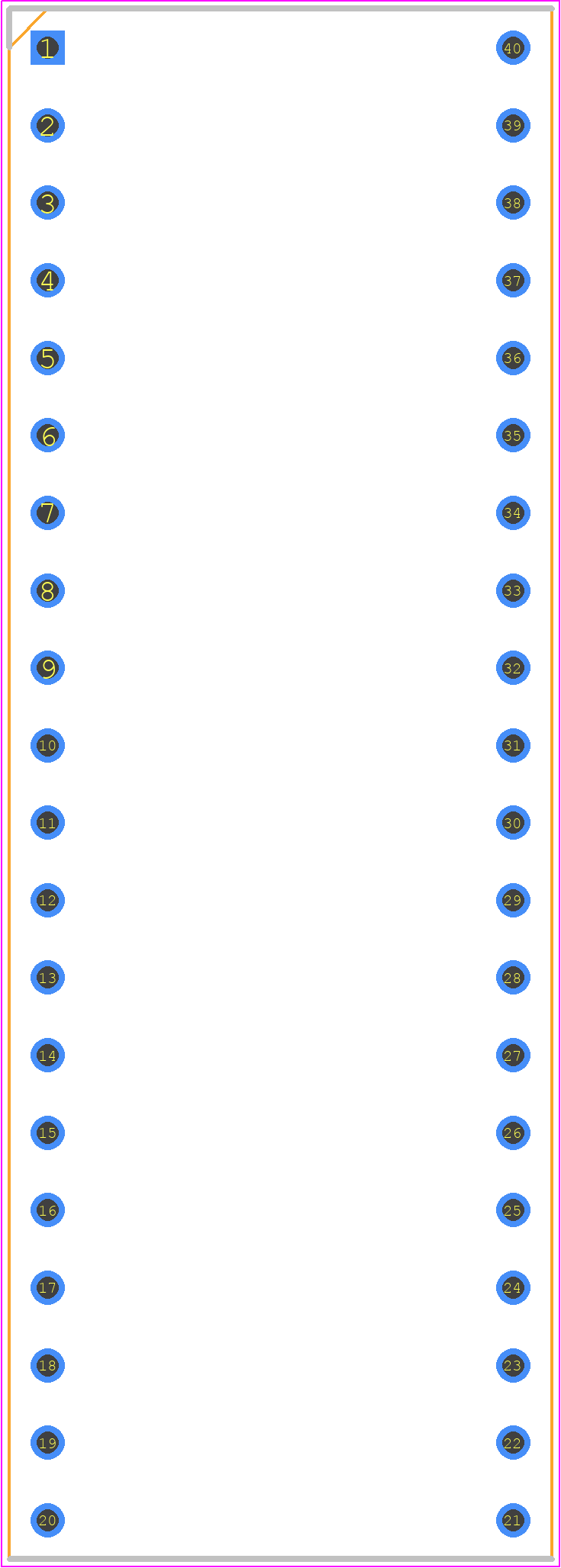

PCB Footprints

840-AG11D-ESL - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 840-AG11D-ESL

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 840-AG11D-ESL
Part Number 840-AG11D-ESL
Manufacturer TE Connectivity
Pin Count 40
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 840-AG11D-ESL
Released Date Feb 16, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

840-AG11D-ESL Details

Manufacturer Part Number:
840-AG11D-ESL
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
9 Weeks
Manufacturer:
TE Connectivity
YTEOL:
0
Body Breadth:
0.7 inch
Body Depth:
0.18 inch
Body Length:
2 inch
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin/Lead (Sn/Pb)
Contact Material:
BERYLLIUM COPPER
Contact Style:
RND PIN-SKT
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP40
Housing Material:
POLYESTER
JESD-609 Code:
e0
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
40
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.6000000000000001 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

840-AG11D-ESL Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 840-AG11D-ESL connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
Yes, the 840-AG11D-ESL connector is designed for outdoor use and has a rating of IP67, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes.
The operating temperature range of the 840-AG11D-ESL connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
While the datasheet specifies 18 AWG wire, the connector can accommodate wire sizes from 16 AWG to 20 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to ensure reliable connections.

Trust Checks

Community Provided

System Verified

Community Approved

840-AG11D-ESL Overview

Use the download button to access the 840-AG11D-ESL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 840-A, or try a keyword search, such as Sockets and Chip Carriers
