840-AG11D footprint, schematic symbol and 3D model by TE Connectivity

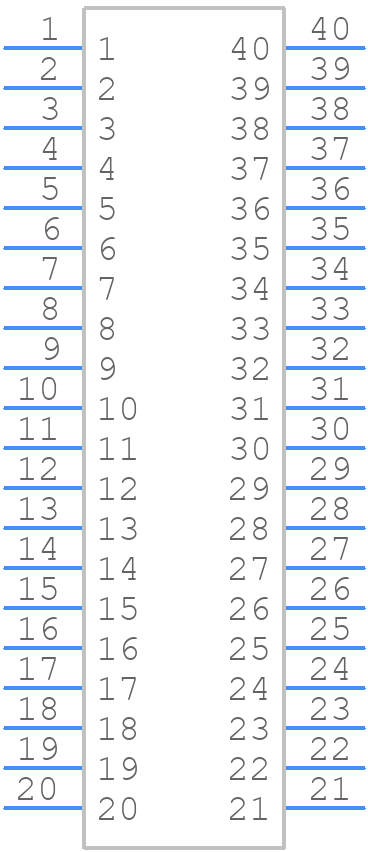

Symbol

click to zoom

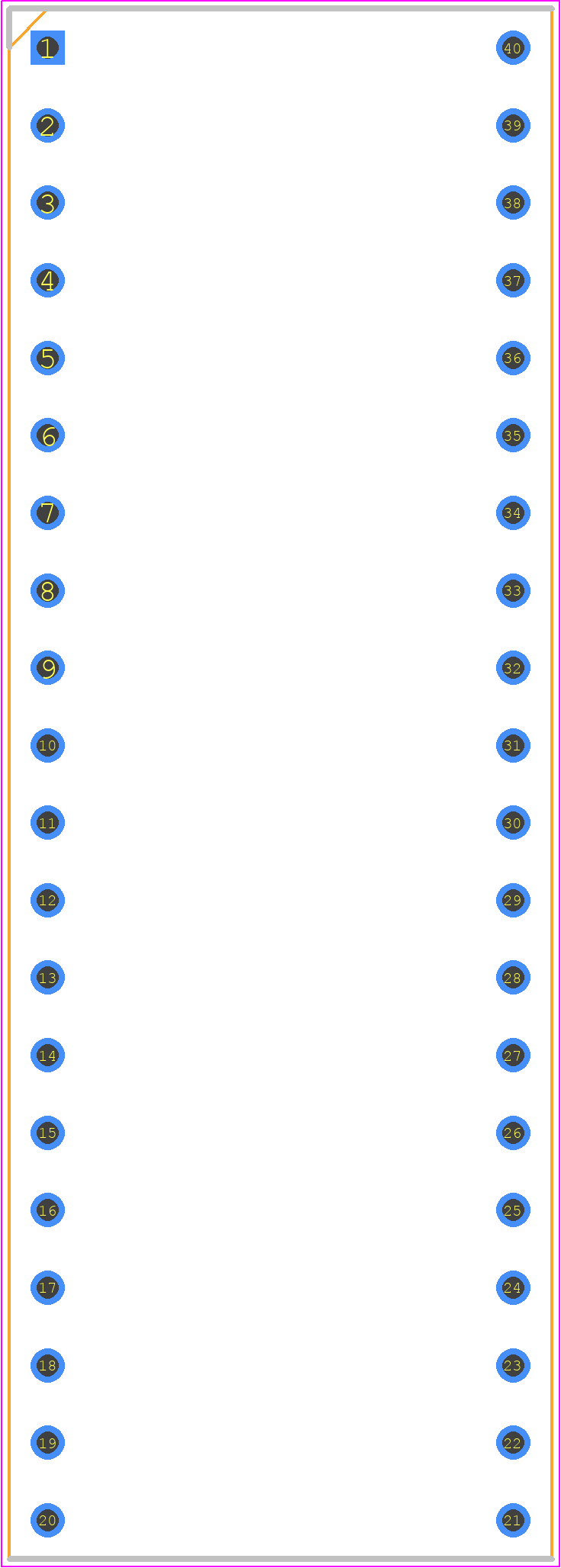

PCB Footprints

840-AG11D - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-40

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 840-AG11D
Part Number 840-AG11D
Manufacturer TE Connectivity
Pin Count 40
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-40
Released Date May 8, 2024
Last Modified Date May 8, 2024 6:59 AM UTC
Pinout / Pin List Click Here (Member Only)

840-AG11D Details

Manufacturer Part Number:
840-AG11D
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Body Breadth:
0.7 inch
Body Depth:
0.18 inch
Body Length:
2 inch
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin/Lead (Sn/Pb)
Contact Material:
BERYLLIUM COPPER
Contact Style:
RND PIN-SKT
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP40
Dielectric Withstanding Voltage:
1000VAC V
Housing Material:
POLYETHYLENE POLYESTER
Insulation Resistance:
5000000000 Ω
JESD-609 Code:
e0
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
40
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.6051181102362205 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

840-AG11D Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in) for the screw locks on the 840-AG11D connector.
Yes, the 840-AG11D connector is designed to withstand high-vibration environments and is suitable for use in applications such as industrial machinery, transportation, and aerospace.
The operating temperature range for the 840-AG11D connector is -40°C to 125°C (-40°F to 257°F).
Yes, the 840-AG11D connector is designed to be resistant to harsh environments, including exposure to chemicals and moisture. It meets the requirements of IP67 and IP69K for ingress protection.
Yes, the 840-AG11D connector is designed for high-speed data transmission and is suitable for applications such as Ethernet, USB, and other high-speed protocols.

Trust Checks

Community Provided

System Verified

Community Approved

840-AG11D Overview

Use the download button to access the 840-AG11D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 840-A, or try a keyword search, such as Sockets and Chip Carriers
