8403602JA - Renesas Electronics

Description: The HM-65162/883 is a CMOS 2048 x 8 Static Random Access Memory manufactured using the Renesas Advanced SAJI V process. The device utilizes asynchronous circuit design for fast cycle time and ease of use. The pinout is the JEDEC 24 pin DIP, and 32 pad 8-bit wide standard which allows easy memory board layouts flexible to accommodate a variety of industry standard PROMs, RAMs, ROMs and EPROMs. The HM-65162/883 is ideally suited for use in microprocessor based systems with its 8-bit word length organization.

Download 8403602JA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 8403602JA model

Email notifications will be applied after download.

Send part feedback

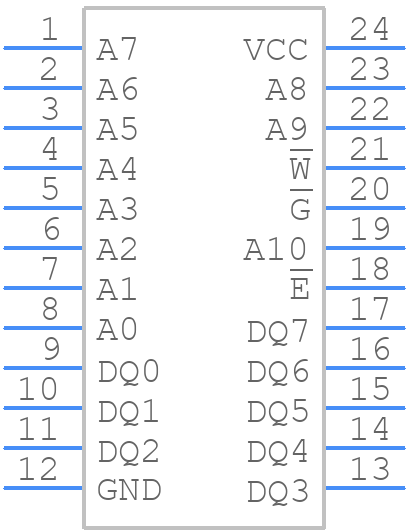

Symbol

8403602JA - Renesas Electronics - PCB symbol

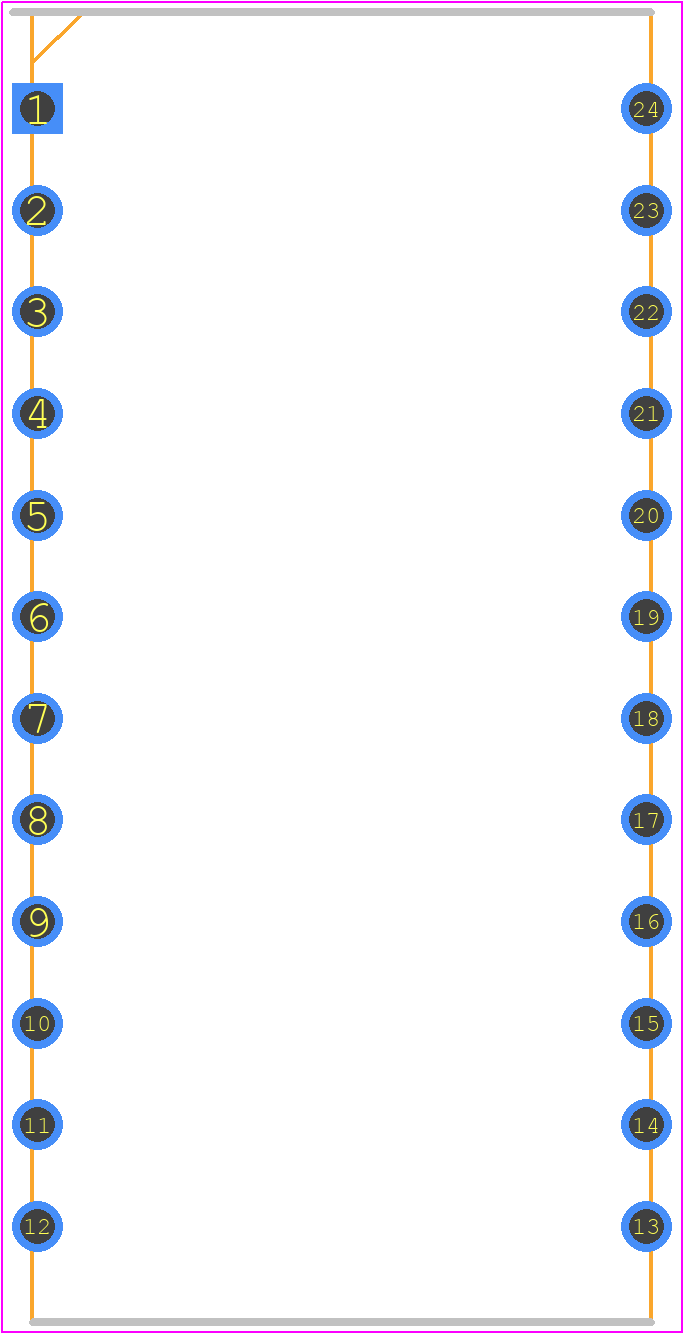

PCB Footprints
