8406701RA - Renesas Electronics

8406701RA Details

• Manufacturer Part Number:

  8406701RA

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• Part Package Code:

  CERDIP

• Package Description:

  DIP-20

• Pin Count:

  20

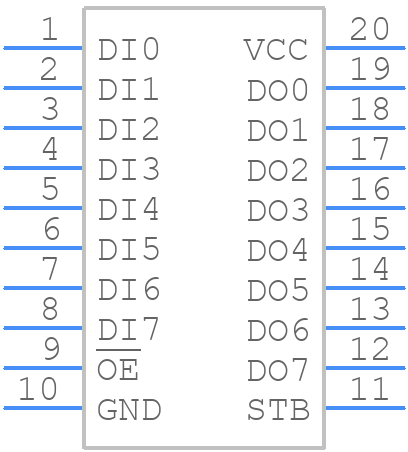

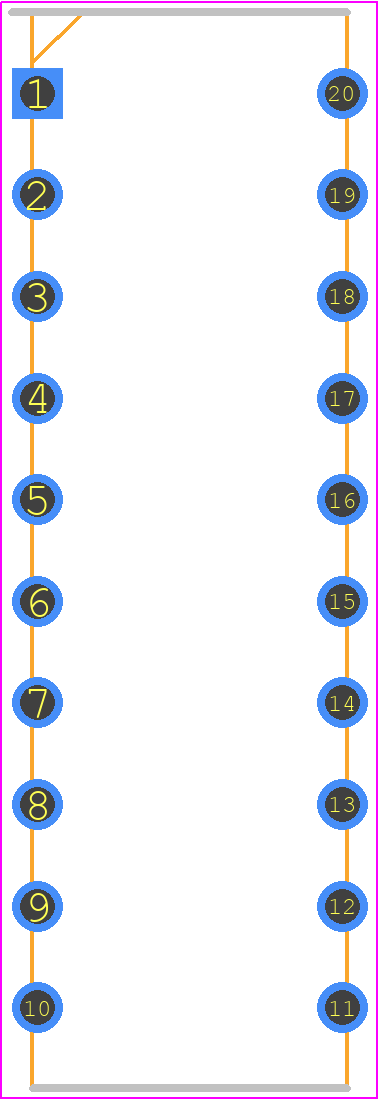

• Manufacturer Package Code:

  F20.3

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  4.75

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  CMOS

• JESD-30 Code:

  R-CDIP-T20

• JESD-609 Code:

  e0

• Length:

  25.4 mm

• Load Capacitance (CL):

  300 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.008 A

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Prop. Delay@Nom-Sup:

  35 ns

• Propagation Delay (tpd):

  35 ns

• Qualification Status:

  Qualified

• Seated Height-Max:

  3.86 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
