The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and follow the recommended torque values specified by 3M Interconnect or the system designer.
Yes, the 8420-21A1-RK-TP connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure that the connector is properly secured and mounted to prevent damage or disconnection.
The 8420-21A1-RK-TP connector has a rugged design and is suitable for use in harsh environments, including outdoor applications. However, it's crucial to ensure that the connector is properly sealed and protected from moisture, dust, and other environmental factors that may affect its performance.
The 8420-21A1-RK-TP connector is designed to mate with other 3M Interconnect connectors. While it may be possible to use it with other manufacturers' mating connectors, it's not recommended without proper testing and validation to ensure compatibility and reliability.
The operating temperature range for the 8420-21A1-RK-TP connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consult the specific application requirements and ensure that the connector is used within the recommended temperature range to maintain its performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8420-21A1-RK-TP Overview

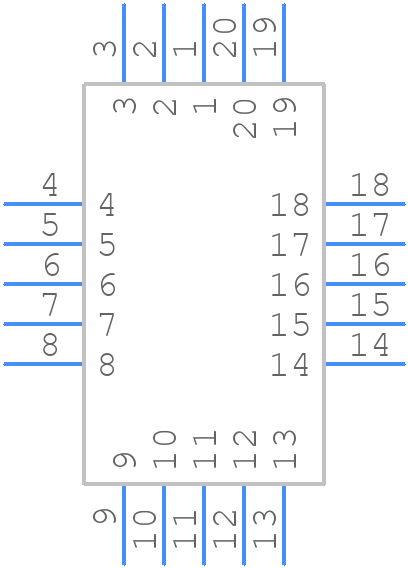

Use the download button to access the 8420-21A1-RK-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8420-,
or try a keyword search, such as Sockets and Chip Carriers
