8420-21B1-RK-TR - 3M

Description: 20 (4 x 5) Pos PLCC Socket Tin Surface Mount -40°C ~ 105°C,1 A

Download 8420-21B1-RK-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

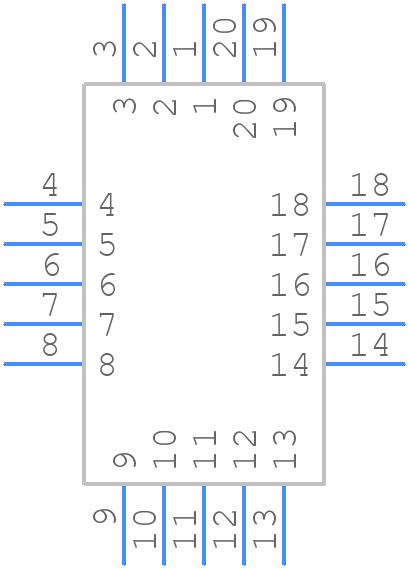

8420-21B1-RK-TR - 3M - PCB symbol
click to zoom
PCB Footprints
8420-21B1-RK-TR - 3M PCB footprint - Other - Other - 8420-21B1-RK-TR-2
click to zoom
3D Models
8420-21B1-RK-TR - 3M - 3D model - Other - 8420-21B1-RK-TR-2
click to zoom

8420-21B1-RK-TR Details

  • Manufacturer Part Number:

    8420-21B1-RK-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    MATTE TIN (160) OVER NICKEL (50)

  • Contact Material:

    PHOSPHOR BRONZE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC20

  • Housing Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • Number of Contacts:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT
