843001AGLF - Renesas Electronics

Description: The 843001 is a Fibre Channel Clock Generator and a member of the family of high performance devices from IDT. The 843001 uses either a 26.5625MHz or a 23.4375 crystal to synthesize 106.25MHz, 187.5MHz or 212.5MHz, using the FREQ_SEL pin. The 843001 has excellent <1ps phase jitter performance, over the 637kHz – 10MHz integration range. The 843001 is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.

Download 843001AGLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

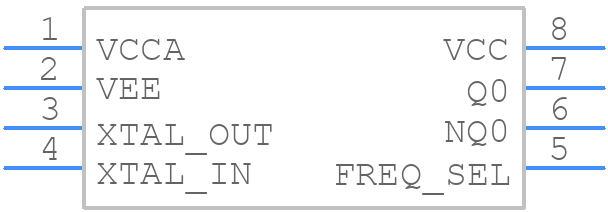

Symbol
843001AGLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
843001AGLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - tssop_8-3
click to zoom
3D Models
843001AGLF - Renesas Electronics - 3D model - Small Outline Packages - tssop_8-3
click to zoom

843001AGLF Details

  • Manufacturer Part Number:

    843001AGLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    PGG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

843001AGLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes, which provide detailed guidelines for power-up and power-down sequences.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, placed as close as possible to the device's power pins. The exact capacitor values and placement can be found in the device's datasheet or application notes.
  • Renesas provides troubleshooting guides and FAQs on their website, which cover common issues and error messages. Additionally, engineers can contact Renesas' technical support team for further assistance.
  • The 843001AGLF is rated for operation in a specific temperature range (-40°C to 125°C) and humidity range (5% to 95% RH). It's essential to ensure that the device operates within these conditions to prevent damage or malfunction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

843001AGLF Overview

Use the download button to access the 843001AGLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84300, or try a keyword search, such as Clock Generators
