Description:The 843003I-01 is a 3 differential output LVPECL Synthesizer designed to generate Ethernet reference clock frequencies and is a member of the family of high performance clock solutions from IDT. Using a 19.53125MHz or 25MHz, 18pF parallel resonant crystal, the following frequencies can be generated based on the settings of 4 frequency select pins (DIV_SEL[A1:A0], DIV_SEL[B1:B0]): 625MHz, 312.5MHz, 156.25MHz, and 125MHz. The 843003I-01 has 2 output banks, Bank A with 1 differential LVPECL output pair and Ban
Renesas provides a recommended PCB layout guide in their application note (R01AN3804EU0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme in their application note (R01AN3804EU0100) to ensure proper device operation. The recommended sequence is: VCC, VCCIO, and then VREF.
Although the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at temperatures above 70°C to ensure reliability and prevent thermal shutdown.
Renesas recommends following their guidelines for vibration testing and design considerations (R01AN3804EU0100) to ensure the device's reliability in high-vibration environments. Additional mechanical support, such as screw-down or adhesive, may be necessary.
Renesas provides a troubleshooting guide in their application note (R01AN3804EU0100) that covers common issues, such as power-on reset, clocking, and signal integrity. Additionally, Renesas offers technical support and FAQs on their website.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
843003AGI-01LF Overview

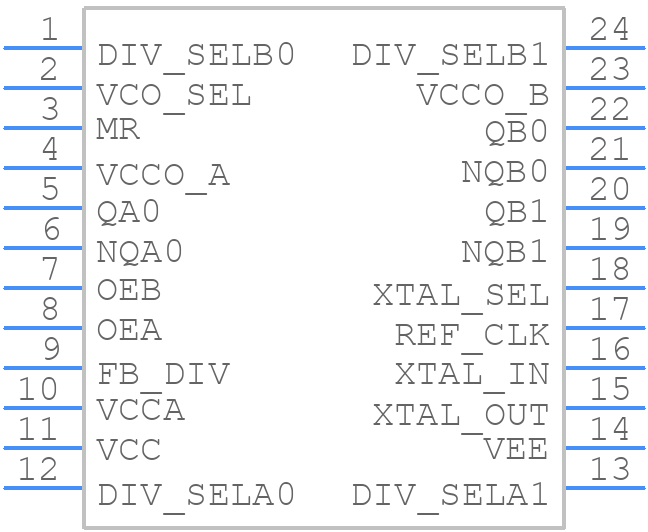

Use the download button to access the 843003AGI-01LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84300,
or try a keyword search, such as Clock Generators
