843011AGLFT - Renesas Electronics

Description: The 843011 is a Fibre Channel Clock Generator. The 843011 uses a 26.5625MHz crystal to synthesize 106.25MHz or a 25MHz crystal to synthesize 100MHz. The 843011 has excellent <1ps phase jitter performance, over the 637kHz – 10MHz integration range. The 843011 is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.

Download 843011AGLFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

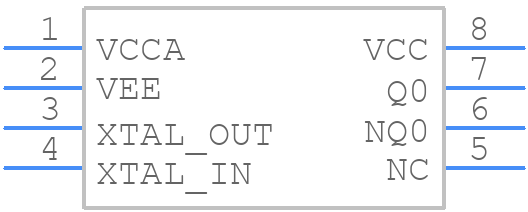

843011AGLFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
843011AGLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-TSSOP Package Outline Drawing_J
click to zoom
3D Models
843011AGLFT - Renesas Electronics - 3D model - Small Outline Packages - 8-TSSOP Package Outline Drawing_J
click to zoom

843011AGLFT Details

  • Manufacturer Part Number:

    843011AGLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    PGG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    113.33 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    26.5625 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    93 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER
