8432-21A1-RK-TP - 3M

Description: IC & Component Sockets 32P PLCC SOCKET SMT W/LOCATION POSTS

Download 8432-21A1-RK-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

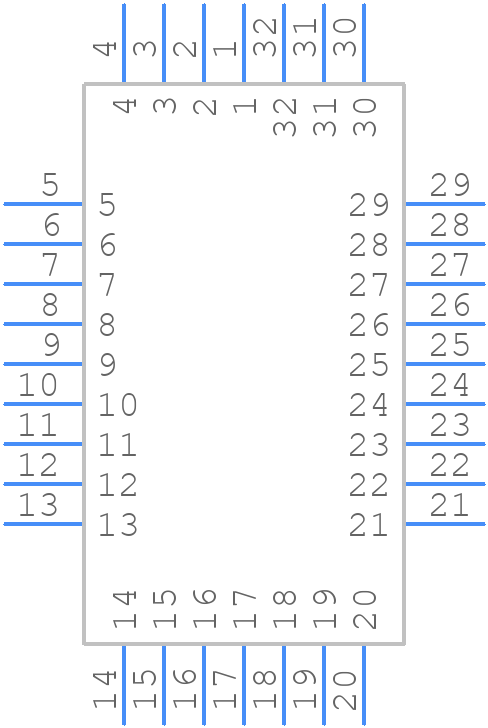

8432-21A1-RK-TP - 3M - PCB symbol
click to zoom
PCB Footprints

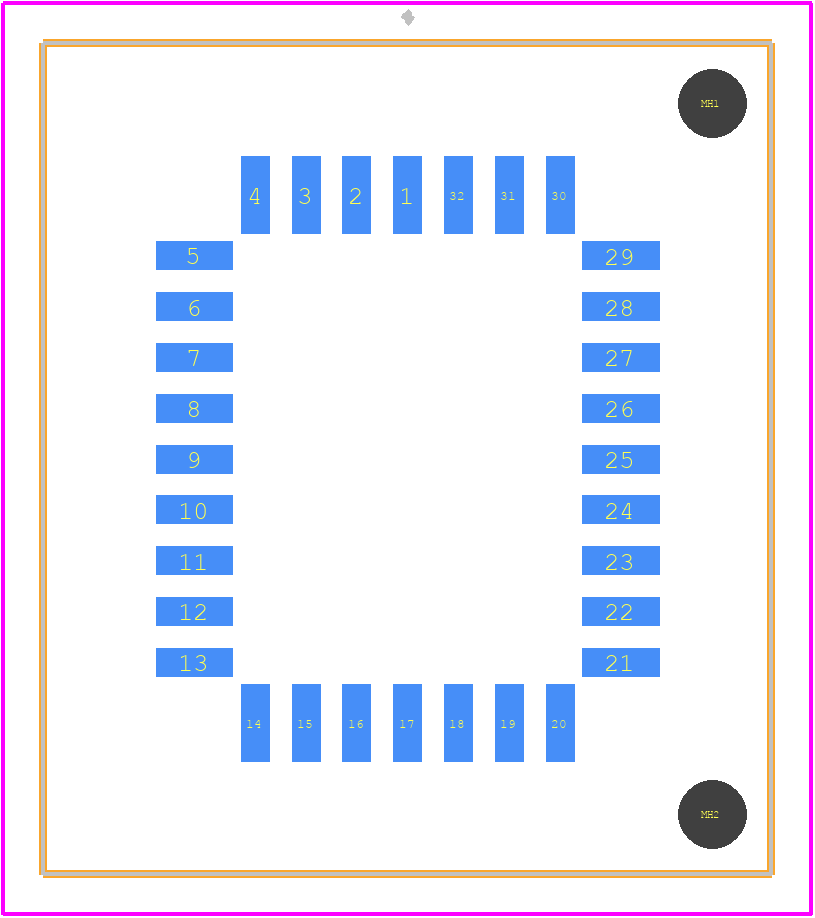

8432-21A1-RK-TP - 3M PCB footprint - Other - Other - 8432-21A1-RK-TP-2
click to zoom
3D Models
8432-21A1-RK-TP - 3M - 3D model - Other - 8432-21A1-RK-TP-2
click to zoom

8432-21A1-RK-TP Details

  • Manufacturer Part Number:

    8432-21A1-RK-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

8432-21A1-RK-TP Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 8432-21A1-RK-TP is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the 8432-21A1-RK-TP is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 8432-21A1-RK-TP is designed to be resistant to moisture and corrosion, and can be used in harsh environments with high humidity or exposure to chemicals.
  • No, the 8432-21A1-RK-TP is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
