Description:The 84329B is a general purpose, single output high frequency synthesizer and a member of the family of High Performance Clock Solutions from IDT. The VCO operates at a frequency range of 250MHz to 700MHz. The VCO frequency is programmed in steps equal to the value of the crystal frequency divided by 16. The VCO and output frequency can be programmed using the serial or parallel interfaces to the configuration logic. The output can be configured to divide the VCO frequency by 1, 2, 4, and 8. Output frequen
Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
Renesas recommends a specific power-up sequence to ensure proper device operation. The sequence involves powering up the VCC pin first, followed by the VDD pin, and then the input signals. The datasheet provides a detailed power-up sequence diagram.
Renesas provides a troubleshooting guide in their application note (R01AN2732EU0100) which includes steps to identify and resolve common issues, such as power-on reset, clock signal integrity, and output voltage regulation.
Renesas recommends considering thermal design factors such as junction-to-ambient thermal resistance, thermal interface material, and heat sink design to ensure the device operates within its specified temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
84329BYLF Overview

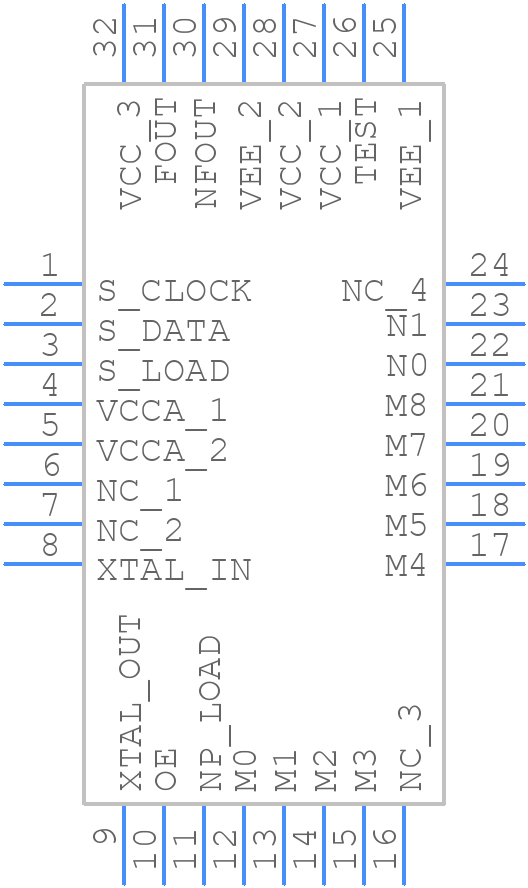

Use the download button to access the 84329BYLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84329,
or try a keyword search, such as Clock Generators
