Part Image

844201BKI-45LF - Renesas Electronics

Description: The 844201I-45 is a PCI Express®TM Clock Generator. The 844201I-45 can synthesize 100MHz or 125MHz reference clock frequencies with a 25MHz crystal. The 844201I-45 has excellent phase jitter performance and is packaged in a small 16-pin VFQFN, making it ideal for use in systems with limited board space.

Download 844201BKI-45LF Model

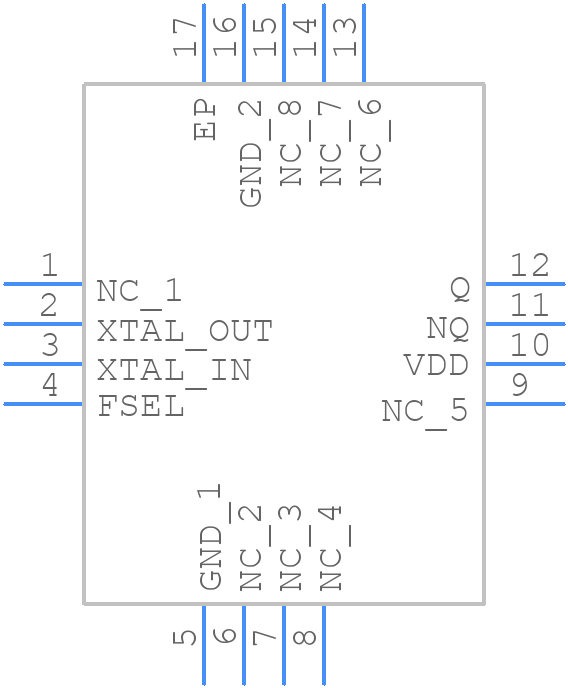

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
844201BKI-45LF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn17
click to zoom
3D Models
844201BKI-45LF - Renesas Electronics  - 3D model - Quad Flat No-Lead - qfn17
click to zoom

844201BKI-45LF Details

  • Manufacturer Part Number:

    844201BKI-45LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Pin Count:

    16

  • Manufacturer Package Code:

    NLG16P2

  • Reach Compliance Code:

    unknown

  • ECCN Code:

    NLR

  • HTS Code:

    8542390001

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

844201BKI-45LF Overview

Use the download button to access the 844201BKI-45LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84420, or try a keyword search, such as Clock Generators
