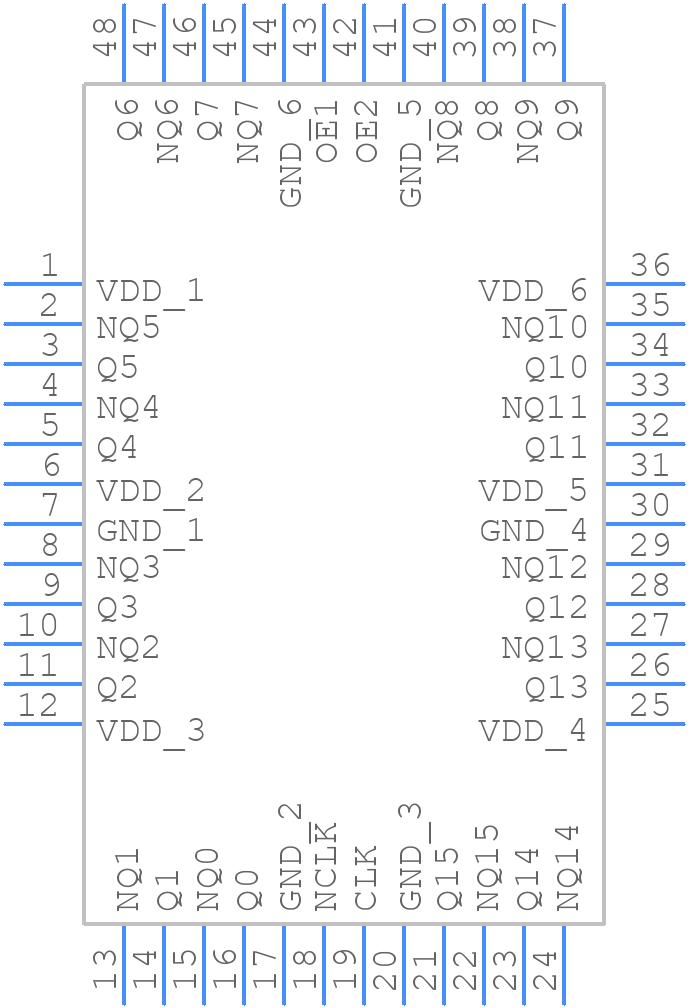

8516FYILF - Renesas Electronics

8516FYILF Details

• Manufacturer Part Number:

  8516FYILF

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TQFP

• Package Description:

  LQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  PRG48

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Family:

  8516

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  48

• Number of True Outputs:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Packing Method:

  TRAY

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  185 mA

• Prop. Delay@Nom-Sup:

  2.4 ns

• Propagation Delay (tpd):

  2.4 ns

• Same Edge Skew-Max (tskwd):

  0.065 ns

• Seated Height-Max:

  1.6 mm

• Supply Voltage-Max (Vsup):

  3.465 V

• Supply Voltage-Min (Vsup):

  3.135 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• fmax-Min:

  700 MHz
