Description:The 8516I is a low skew, high performance 1- to-16 Differential-to-LVDS Clock Distribution Chip and a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT. The 8516I CLK, nCLK pair can accept any differential input levels and translates them to 3.3V LVDS output levels. Utilizing Low Voltage Differential Signaling (LVDS), the 8516I provides a low power, low noise, point-to-point solution for distributing clock signals over controlled impedances of 100?. Dual output enable inputs all
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 8516FYILFT also has a built-in overcurrent detection feature, but it's recommended to use an external circuit for more accurate and reliable protection.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor type should be X5R or X7R, and it should be placed as close as possible to the VIN pin of the 8516FYILFT.
Renesas provides EMC design guidelines in their application notes, which include recommendations for PCB layout, component selection, and shielding. Additionally, it's recommended to follow the IEC 61000-4 standard for EMC testing and compliance.
The 8516FYILFT has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's recommended to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8516FYILFT Overview

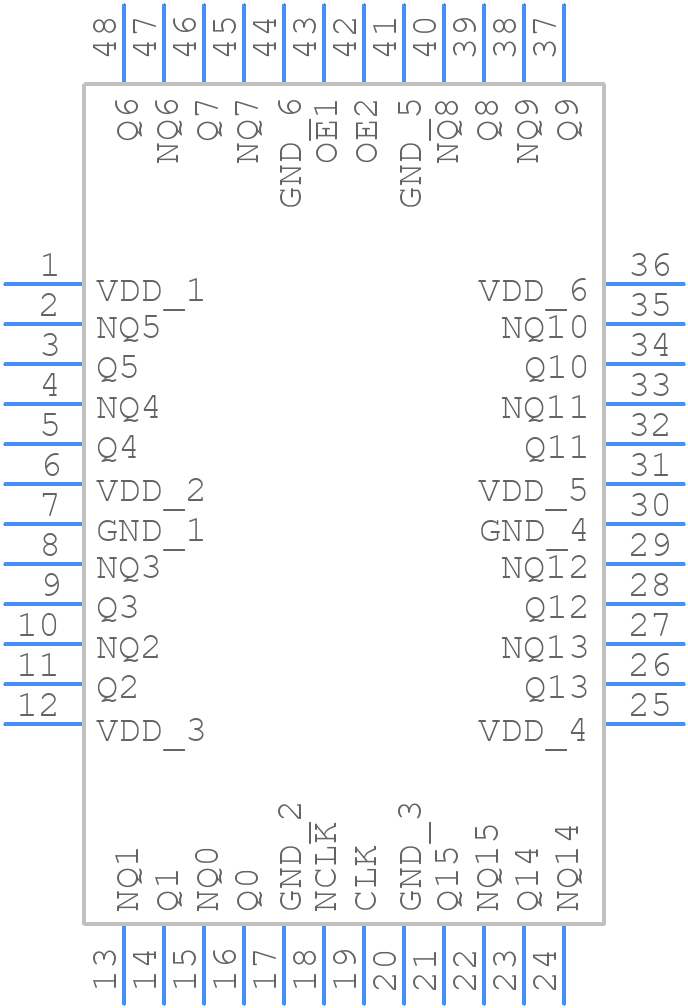

Use the download button to access the 8516FYILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8516F,
or try a keyword search, such as Clock Drivers
