Part Image

85311AMLFT - Renesas Electronics

Description: The 85311 is a low skew, high performance 1-to-2 Differential-to-2.5V/3.3V ECL/LVPECL Fanout Buffer. The CLK, nCLK pair can accept most standard differential input levels. The 85311 is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 85311 ideal for those clock distribution applications demanding well defined performance and repeatability.

Download 85311AMLFT Model

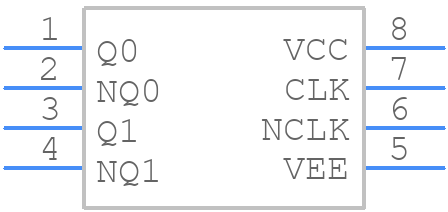

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
85311AMLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 LEAd soic-ren1
click to zoom
3D Models
85311AMLFT - Renesas Electronics  - 3D model - Small Outline Packages - 8 LEAd soic-ren1
click to zoom

85311AMLFT Details

  • Manufacturer Part Number:

    85311AMLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Tin (Sn)

85311AMLFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN4461EJ0100) to ensure proper device operation. The sequence involves powering up the VCC, VCCIO, and VREF pins in a specific order.
  • Renesas recommends using high-frequency, low-ESR decoupling capacitors (e.g., 100nF, 1uF, and 10uF) placed close to the device's power pins to minimize noise and ensure stable operation.
  • Renesas provides guidelines for JTAG interface handling during production testing in their application note (R01AN4461EJ0100). This includes using a JTAG adapter, setting the JTAG clock frequency, and using a boundary scan tool.
  • The exposed pad on the 85311AMLFT is a thermal pad that requires proper thermal design considerations. Renesas recommends using thermal vias, thermal interface material, and a heat sink to ensure efficient heat dissipation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

85311AMLFT Overview

Use the download button to access the 85311AMLFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 85311, or try a keyword search, such as Clock Drivers
