85320AMILF - Renesas Electronics

Description: The 85320I is a LVCMOS / LVTTL-to-Differential 3.3V, 2.5V LVPECL translator. The 85320I has a single ended clock input. The single ended clock input accepts LVCMOS or LVTTL input levels and translates them to 3.3V or 2.5V LVPECL levels. The small outline 8-pin SOIC package makes this device ideal for applications where space, high performance and low power are important.

Download 85320AMILF Model

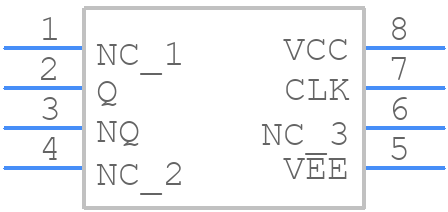

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
85320AMILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8
click to zoom
3D Models
85320AMILF - Renesas Electronics  - 3D model - Small Outline Packages - DCG8
click to zoom

85320AMILF Details

  • Manufacturer Part Number:

    85320AMILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Delay-Max:

    1.7 ns

  • Interface IC Type:

    LVTTL/TTL TO LVPECL/PECL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

85320AMILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-001) which includes thermal design considerations, such as using a thermal pad and vias to dissipate heat.
  • Renesas recommends a specific power sequencing order in their application note (APL-AN-002), which involves powering up the core voltage (VCC) before the I/O voltage (VCCIO).
  • Renesas recommends using a combination of high-frequency and low-frequency decoupling capacitors, placed as close as possible to the device pins, with a minimum of 2.2uF and 10uF capacitors for VCC and VCCIO, respectively.
  • Renesas provides a JTAG interface specification in their datasheet, which includes guidelines for signal levels, clock frequency, and boundary scan implementation.
  • Renesas recommends using thermal interface materials, such as thermal tape or thermal grease, to improve heat transfer between the device and the heat sink or PCB. Additionally, they suggest using a heat sink with a thermal resistance of 10°C/W or less.
