8535-01PGGI - Renesas Electronics

Description: Clock Drivers & Distribution 1:4 LVCMOS-to-3.3V LVPECL Fanout Buffer

Download 8535-01PGGI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 8535-01PGGI model

Email notifications will be applied after download.

Send part feedback

Symbol

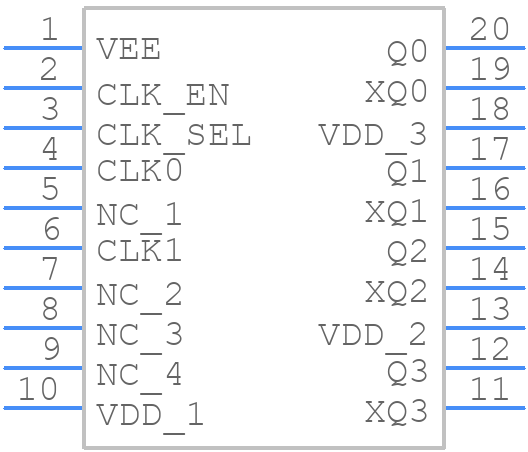

8535-01PGGI - Renesas Electronics - PCB symbol

PCB Footprints

8535-01PGGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG 20

3D Models

8535-01PGGI - Renesas Electronics - 3D model - Small Outline Packages - PGG 20

Datasheet Download Datasheet
Stock & Prices Price & Stock for 8535-01PGGI
Part Number 8535-01PGGI
Manufacturer Renesas Electronics
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PGG 20
Released Date Apr 20, 2022
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

8535-01PGGI Details

Manufacturer Part Number:
8535-01PGGI
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Community Provided

System Verified

Community Approved

8535-01PGGI Overview

Use the download button to access the 8535-01PGGI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 8535-, or try a keyword search, such as Clock Drivers
