Description:The 8535-01 is a low skew, high performance 1-to-4 LVCMOS/LVTTL-to-3.3V LVPECL fanout buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT. The 8535-01 has two single ended clock inputs. the single ended clock input accepts LVCMOS or LVTTL input levels and translate them to 3.3V LVPECL levels. The clock enable is internally synchronized to eliminate runt clock pulses on the output during asynchronous assertion/deassertion of the clock enable pin. Guaranteed output and
Renesas provides a recommended PCB layout guide in their application note (APL-AN-115) for the 8535AG-01LF, which includes thermal vias, thermal pads, and component placement guidelines to ensure optimal thermal performance.
Renesas recommends following the IEC 62368-1 standard for EMC compliance. Additionally, they provide guidelines for PCB layout, component selection, and shielding in their application note (APL-AN-115) to minimize electromagnetic interference (EMI).
Although the datasheet specifies an operating temperature range of -40°C to 105°C, Renesas recommends derating the device's power dissipation above 85°C to ensure reliable operation and prevent thermal shutdown.
Yes, the 8535AG-01LF is qualified for automotive and high-reliability applications. Renesas provides additional documentation, such as the Automotive Reliability Report and the High-Reliability Report, which outline the device's performance and testing under harsh environmental conditions.
Renesas provides a troubleshooting guide in their application note (APL-AN-115) that covers common issues, their causes, and recommended solutions. Additionally, they offer technical support and FAQs on their website to help engineers resolve design and implementation issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8535AG-01LF Overview

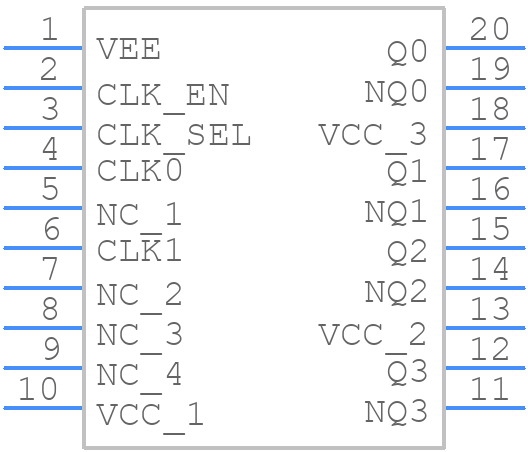

Use the download button to access the 8535AG-01LF schematic symbol, PCB footprint, and 3D model.
