Description:The 8535I-21 is a low skew, high performance 1-to-2 LVCMOS/LVTTL-to-3.3V LVPECL fanout buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT. The 8535I-21 has two single-ended clock inputs. The single-ended clock input accepts LVCMOS or LVTTL input levels and translate them to 3.3V LVPECL levels. The clock enable is internally synchronized to eliminate runt clock pulses on the output during asynchronous assertion/deassertion of the clock enable pin. Guaranteed output an
Renesas provides a recommended PCB layout guide in their application note (R01AN3804EU0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends following their thermal design guidelines, using a heat sink, and ensuring good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques.
Renesas recommends using a low-ESR capacitor (e.g., ceramic or film capacitor) for CIN and COUT, with values between 1-10uF and 1-22uF, respectively. The specific values depend on the application's requirements and should be determined through simulation and testing.
Check the PG signal's voltage level, ensure proper connection to the output voltage, and verify that the output voltage is within the specified range. Also, review the device's fault detection and protection features, such as overcurrent protection and undervoltage lockout.
Operating the device outside of its recommended conditions can lead to reduced performance, decreased reliability, and potentially even damage to the device. Always ensure that the device operates within its specified voltage, current, and temperature ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8535AGI-21LFT Overview

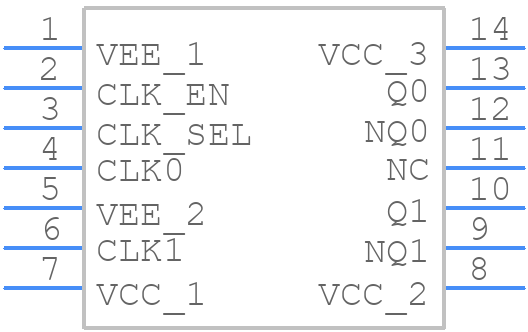

Use the download button to access the 8535AGI-21LFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8535A,
or try a keyword search, such as Clock Drivers
