853S012AKILF - Renesas Electronics

Description: The 853S012I is an 12:1 Differential-to-3.3V or 2.5V LVPECL Clock/Data Multiplexer which can operate up to 3.2GHz. The 853S012I has twelve differential selectable clock inputs. The CLK, nCLK input pairs can accept LVPECL, LVDS or CML levels. The fully differential architecture and low propagation delay make it ideal for use in clock distribution circuits. The select pins have internal pulldown resistors.

Download 853S012AKILF Model

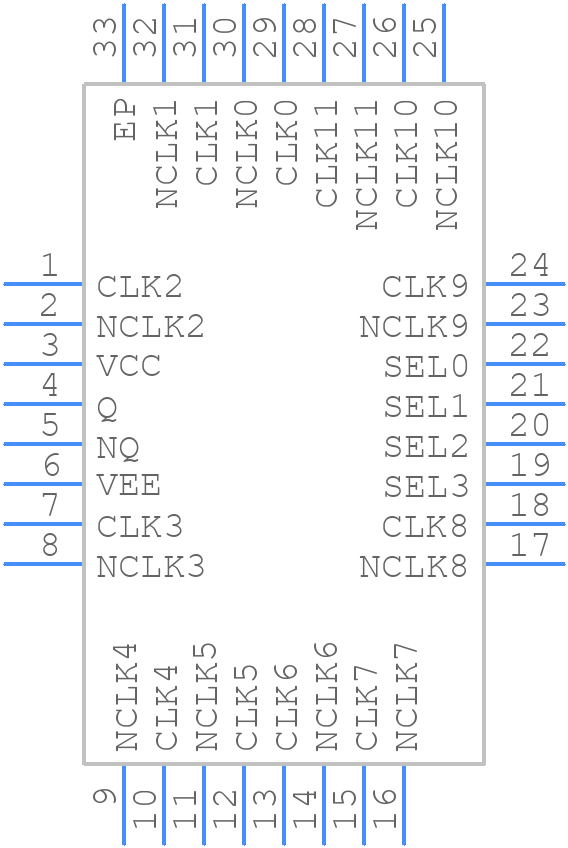

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
853S012AKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin VFQFPN
click to zoom
3D Models
853S012AKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - 32-pin VFQFPN
click to zoom

853S012AKILF Details

  • Manufacturer Part Number:

    853S012AKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES AT 3.3V SUPPLY

  • Family:

    853S

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    70 mA

  • Prop. Delay@Nom-Sup:

    0.875 ns

  • Propagation Delay (tpd):

    0.875 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    3200 MHz

853S012AKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions and trigger a shutdown or warning signal. The datasheet provides guidelines for overcurrent detection and protection.
  • Renesas recommends a power-up sequence that ensures the internal voltage regulators are enabled in the correct order to prevent damage or malfunction. The recommended sequence is: VCC, then VDD, and finally EN (enable) pin.
  • Renesas provides an I2C troubleshooting guide in their application note (APL-AN-1202) which covers common issues such as bus contention, clock stretching, and slave address conflicts. Additionally, using an I2C bus analyzer or logic analyzer can help identify issues with the I2C interface.
  • The 853S012AKILF has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed +150°C. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
