Description:The 853S024 is a low skew, 1-to-24 Differential-to-3.3V, 2.5V LVPECL Fanout Buffer. The PCLK, nPCLK pair can accept most standard differential input levels. The 853S024 is characterized to operate from either a 3.3V or a 2.5V power supply. Guaranteed output skew characteristics make the 853S024 ideal for those clock distribution applications demanding well defined performance and repeatability.
Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The 853S024AYLF requires a specific power sequencing order to ensure proper operation. Renesas recommends following the power-up and power-down sequences outlined in the datasheet, and using a power management IC (PMIC) to control the power rails if necessary.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1uF to 1uF, placed as close as possible to the power pins of the 853S024AYLF. The exact capacitor value and type may vary depending on the specific application and operating conditions.
Renesas provides a clock signal troubleshooting guide in their application notes, which includes steps to verify the clock signal frequency, amplitude, and jitter. Additionally, using a high-speed oscilloscope and a clock signal analyzer can help identify issues with the clock signal.
The 853S024AYLF has a high thermal design power (TDP) and requires careful thermal design considerations to ensure reliable operation. Renesas recommends using thermal simulation tools to model the device's thermal performance, and implementing heat sinks, thermal interfaces, and airflow management to keep the device within its recommended operating temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
853S024AYLF Overview

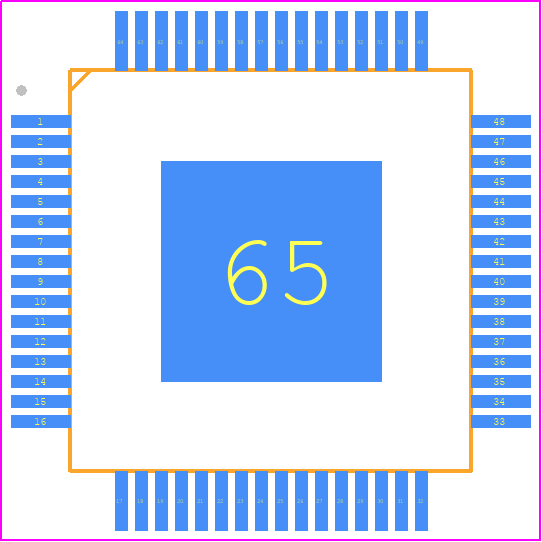

Use the download button to access the 853S024AYLF schematic symbol, PCB footprint, and 3D model.
