Description:The 853S031I is a low skew, high performance 1-to-9 Differential-to-2.5V/3.3V LVPECL/ECL Fanout Buffer. The 853S031I has two selectable clock inputs. The CLK, nCLK pair can accept most standard differential input levels. The PCLK, nPCLK pair can accept LVPECL, LVDS, CML or SSTL input levels. The clock enable is internally synchronized to eliminate runt pulses on the outputs during asynchronous assertion/deassertion of the clock enable pin. Guaranteed output and part-to-part skew characteristics make the 853
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
Renesas recommends following the power sequencing guidelines outlined in the datasheet, which involves powering up the VCC and VCCIO pins in a specific order. Additionally, Renesas provides a power sequencing application note that provides more detailed information and examples.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1uF to 1uF, placed as close as possible to the power pins. The datasheet provides more detailed information on decoupling capacitor selection and placement.
Renesas provides a troubleshooting guide in their application note documents, which covers common issues and their solutions. Additionally, Renesas offers technical support through their website and support teams, which can provide more detailed assistance.
The 853S031BYILF is rated for operation in the industrial temperature range of -40°C to 85°C, and is designed to meet various environmental standards, including RoHS and REACH. The datasheet provides more detailed information on operating conditions and environmental compliance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
853S031BYILF Overview

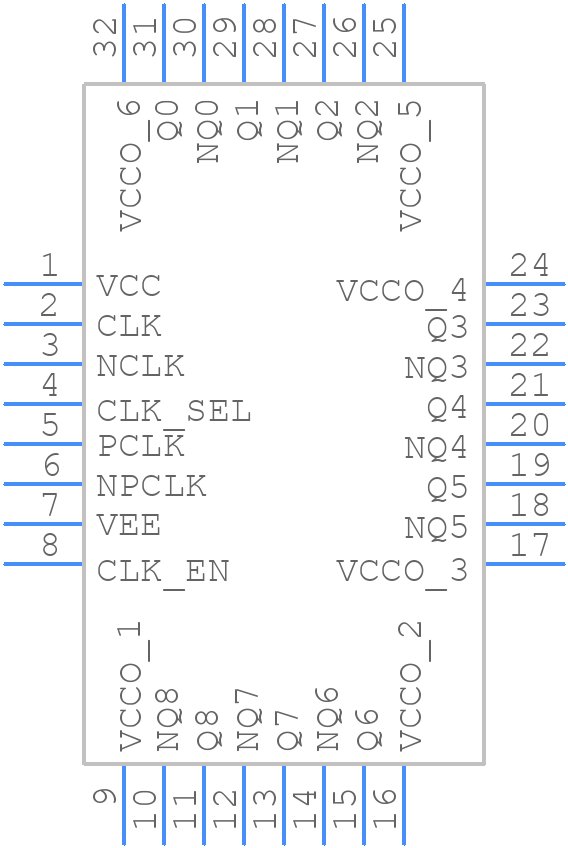

Use the download button to access the 853S031BYILF schematic symbol, PCB footprint, and 3D model.
