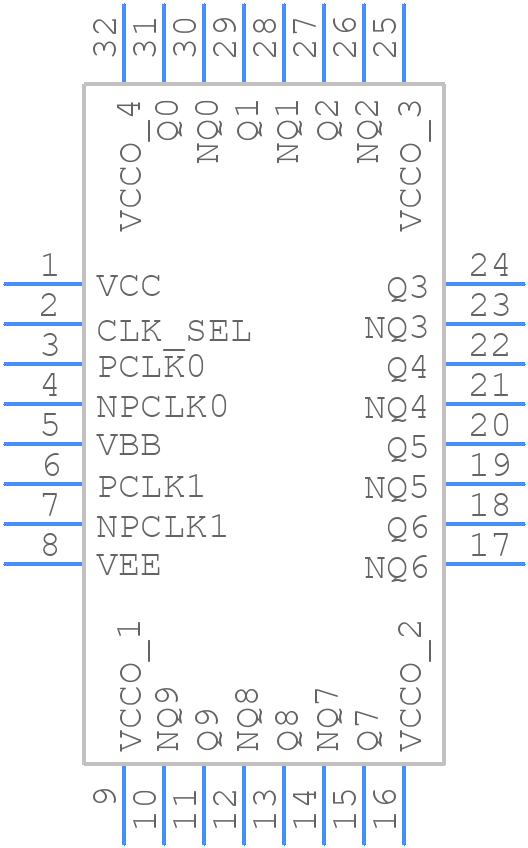

853S111AYILF/W - Renesas Electronics

853S111AYILF/W Details

• Manufacturer Part Number:

  853S111AYILF/W

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TQFP

• Pin Count:

  32

• Manufacturer Package Code:

  PRG32

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6.4

• Additional Feature:

  ECL MODE OPERATING SUPPLY -2.375 TO -3.465 V

• Family:

  853S

• Input Conditioning:

  DIFFERENTIAL MUX

• JESD-30 Code:

  S-PQFP-G32

• JESD-609 Code:

  e3

• Length:

  7 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of True Outputs:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Propagation Delay (tpd):

  0.745 ns

• Same Edge Skew-Max (tskwd):

  0.055 ns

• Seated Height-Max:

  1.6 mm

• Supply Voltage-Max (Vsup):

  3.465 V

• Supply Voltage-Min (Vsup):

  2.375 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• fmax-Min:

  2500 MHz
