Part Image

85408BGLFT - Renesas Electronics

Description: The 85408 is a low skew, high performance 1-to-8 Differential-to-LVDS Clock Distribution Chip from IDT. The 85408 CLK, nCLK pair can accept most differential input levels and translates them to 3.3V LVDS output levels. Utilizing Low Voltage Differential Signaling (LVDS), the 85408 provides a low power, low noise, low skew, point-to-point solution for distributing LVDS clock signals. Guaranteed output and part-to-part skew specifications make the 85408 ideal for those applications demanding well defined perf

Download 85408BGLFT Model

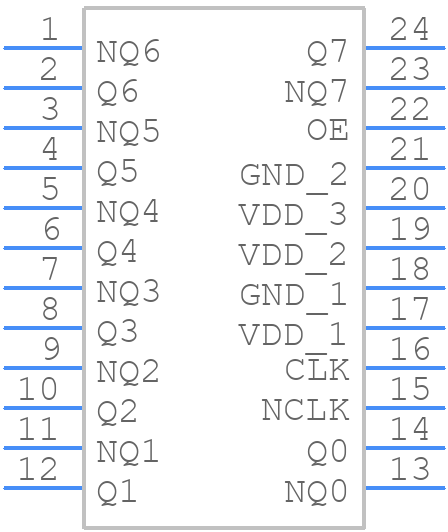

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
85408BGLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG24*-1
click to zoom
3D Models
85408BGLFT - Renesas Electronics  - 3D model - Small Outline Packages - PGG24*-1
click to zoom

85408BGLFT Details

  • Manufacturer Part Number:

    85408BGLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    PGG24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    85408

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    90 mA

  • Prop. Delay@Nom-Sup:

    2.4 ns

  • Propagation Delay (tpd):

    2.4 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • fmax-Min:

    700 MHz

85408BGLFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4301EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN4301EJ0100) to ensure proper device operation. The sequence involves powering up the VCC, VCCIO, and VREF pins in a specific order.
  • The built-in voltage regulator has a limited current capability (typically 100mA) and is intended for powering the internal circuitry. It's not suitable for powering external components or high-current applications.
  • Renesas provides power-saving modes, such as the 'Low Power Mode' and 'Sleep Mode', which can be enabled through register settings. Additionally, optimizing the clock frequency, disabling unused peripherals, and using dynamic voltage and frequency scaling can help reduce power consumption.
  • Renesas recommends following the guidelines in their EMC application note (R01AN4302EJ0100) for designing a robust and EMC-compliant system. This includes using proper shielding, filtering, and layout techniques to minimize electromagnetic interference.
