854104AGILF - Renesas Electronics

Description: The 854104I is a low skew, high performance 1-to-4 Differential-to-LVDS Clock Fanout Buffer. Utilizing Low Voltage Differential Signaling (LVDS), the 854104I provides a low power, low noise, solution for distributing clock signals over controlled impedances of 100?. The 854104I accepts a differential input level and translates it to LVDS output levels. Guaranteed output and part-to-part skew characteristics make the 854104I ideal for those applications demanding well defined performance and repeatability.

Download 854104AGILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

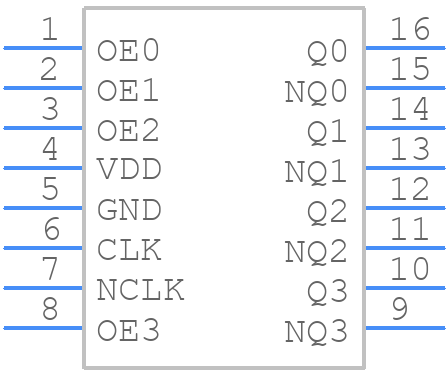

854104AGILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
854104AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG16 (TSSOP16)-
click to zoom
3D Models
854104AGILF - Renesas Electronics - 3D model - Small Outline Packages - PGG16 (TSSOP16)-
click to zoom

854104AGILF Details

  • Manufacturer Part Number:

    854104AGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

854104AGILF Frequently Asked Questions (FAQs)

  • Renesas recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the power plane.
  • Renesas recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K between the device and the heat sink. Ensure the heat sink is properly secured and the TIM is evenly applied.
  • Renesas recommends powering up the device in the following sequence: VCC, AVCC, and then DVCC. Ensure all power supplies are stable before applying clock signals.
  • Renesas recommends using a human body model (HBM) ESD protection circuit with a minimum of 2 kV rating. Ensure the ESD protection circuit is connected to the device's VCC pin.
  • Renesas recommends routing clock signals as differential pairs with a 100-ohm impedance and a maximum length of 10 inches. Use a clock signal integrity analysis tool to optimize the routing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

854104AGILF Overview

Use the download button to access the 854104AGILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 85410, or try a keyword search, such as Clock Drivers
