A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a 50-ohm microstrip line for the RF output.
Use the lowest possible supply voltage (1.8V) and reduce the operating frequency. Disable the internal voltage regulator if an external regulator is used. Use the power-down mode when not transmitting.
The maximum operating temperature for the 854651 is 125°C. However, it's recommended to operate within 85°C for optimal performance and reliability.
Yes, but impedance matching is required to ensure optimal performance. Use a pi-network or a series LC circuit to match the impedance.
Use a spectrum analyzer to check the output frequency and power. Verify the input voltage and current. Check the PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guides.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
854651 Overview

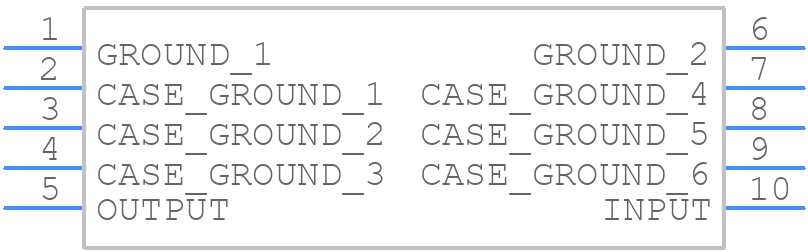

Use the download button to access the 854651 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 85465,
or try a keyword search, such as SAW Filters
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
