854S057AGILF - Renesas Electronics

Description: The 854S057I is a 4:1 or 2:1 LVDS Clock Multiplexer which can operate up to 2GHz. The PCLK, nPCLK pairs can accept most standard differential input levels. Internal termination is provided on each differential input pair. The 854S057I operates using a 2.5V supply voltage. The fully differential architecture and low propagation delay make it ideal for use in high speed multiplexing applications. The select pins have internal pulldown resistors. Leaving one input unconnected (pulled to logic low by the intern

Download 854S057AGILF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 854S057AGILF model

Email notifications will be applied after download.

Send part feedback

Symbol

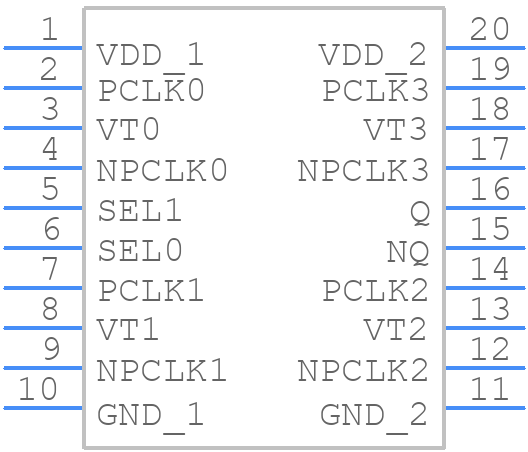

854S057AGILF - Renesas Electronics - PCB symbol

PCB Footprints

854S057AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 20-pin TSSOP_

3D Models

854S057AGILF - Renesas Electronics - 3D model - Small Outline Packages - 20-pin TSSOP_

Datasheet Download Datasheet
Stock & Prices Price & Stock for 854S057AGILF
Part Number 854S057AGILF
Manufacturer Renesas Electronics
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 20-pin TSSOP_
Released Date Jun 22, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

854S057AGILF Details

Manufacturer Part Number:
854S057AGILF
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
TSSOP
Package Description:
TSSOP-20
Pin Count:
20
Manufacturer Package Code:
PGG20
HTS Code:
8542.39.00.60
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
JESD-609 Code:
e3
Logic IC Type:
LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level:
1
Terminal Finish:
Tin (Sn)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

854S057AGILF Overview

Use the download button to access the 854S057AGILF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 854S0, or try a keyword search, such as Clock Drivers
