854S057BGILF - Renesas Electronics

Description: The 854S057BI is a 4:1 or 2:1 LVDS Clock Multiplexer which can operate up to 2GHz. The PCLK, nPCLK pairs can accept most standard differential input levels. Internal termination is provided on each differential input pair. The 854S057BI operates using a 2.5V supply voltage. The fully differential architecture and low propagation delay make it ideal for use in high speed multiplexing applications. The select pins have internal pulldown resistors. Leaving one input unconnected (pulled to logic low by the inte

Download 854S057BGILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

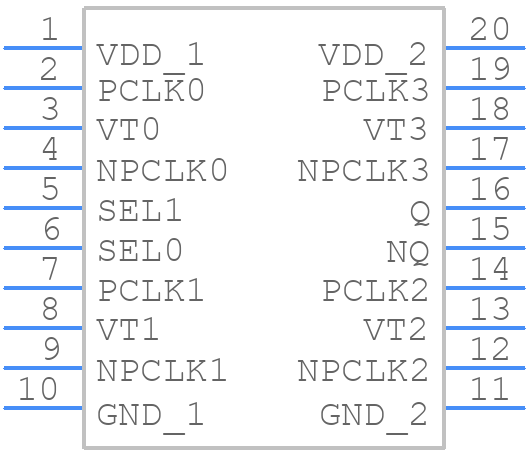

854S057BGILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
854S057BGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG20
click to zoom
3D Models
854S057BGILF - Renesas Electronics - 3D model - Small Outline Packages - PGG20
click to zoom

854S057BGILF Details

  • Manufacturer Part Number:

    854S057BGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    854S

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    0.8 ns

  • Propagation Delay (tpd):

    0.8 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    2000 MHz

854S057BGILF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended for optimal thermal performance. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the package.
  • Implement a robust power-on reset circuit, ensure a stable clock source, and consider using a voltage regulator with a low dropout voltage to maintain a stable supply voltage across the entire temperature range.
  • Use a multi-layer PCB with a solid ground plane, route high-frequency signals on inner layers, and consider adding EMI filters or ferrite beads on sensitive signals. Ensure proper shielding and grounding of the device.
  • Use the device's low-power modes, optimize clock frequencies, and consider using a power gating technique. Implement a dynamic voltage and frequency scaling (DVFS) scheme to minimize power consumption.
  • Maintain a consistent impedance of 50 ohms for high-speed signals, use controlled impedance routing, and add series termination resistors as needed. Ensure signal lines are short and direct, and avoid vias and stubs.
