854S058AGILFT - Renesas Electronics

Description: The 854S058I is an 8:1 Differential-to-LVDS Clock Multiplexer which can operate up to 2.5GHz. The 854S058I has 8 selectable differential clock inputs. The PCLK, nPCLK input pairs can accept LVPECL, LVDS or SSTL levels. The fully differential architecture and low propagation delay make it ideal for use in clock distribution circuits. The select pins have internal pulldown resistors. The SEL2 pin is the most significant bit and the binary number applied to the select pins will select the same numbered data in

Download 854S058AGILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

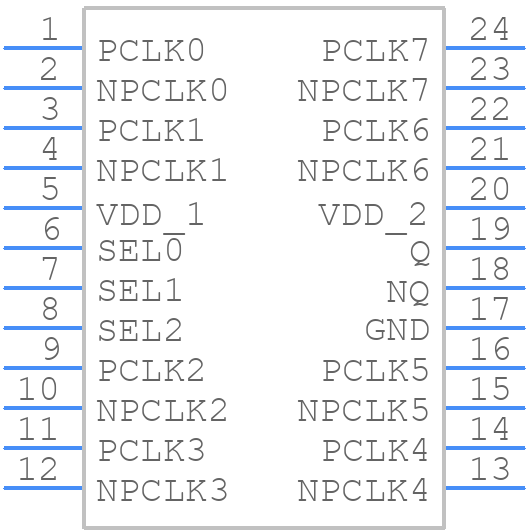

854S058AGILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
854S058AGILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - “Lead-Free” 24 Lead TSSOP
click to zoom
3D Models
854S058AGILFT - Renesas Electronics - 3D model - Small Outline Packages - “Lead-Free” 24 Lead TSSOP
click to zoom

854S058AGILFT Details

  • Manufacturer Part Number:

    854S058AGILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    PGG24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Family:

    S

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inverted Outputs:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.6 ns

  • Propagation Delay (tpd):

    0.6 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    2500 MHz

854S058AGILFT Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide and thermal design guidelines in their application notes and user manuals. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • Renesas recommends using a combination of power gating, dynamic voltage and frequency scaling, and power-saving modes to minimize power consumption. Additionally, using a well-designed power delivery network and decoupling capacitors can help reduce power noise.
  • Renesas provides a security guide that outlines recommended security measures, such as secure boot mechanisms, encryption, and access control. It's essential to implement these measures to prevent unauthorized access and ensure the integrity of the system.
  • Renesas offers a range of development tools, including debuggers, simulators, and evaluation boards, to help engineers troubleshoot and debug issues. Additionally, Renesas provides technical support and documentation to aid in the debugging process.
  • The 854S058AGILFT is designed to operate in a range of environmental conditions, including temperature, humidity, and vibration. Renesas provides guidelines for operating conditions and recommends following industry standards for environmental testing and validation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
