- Part Number 856671
- Manufacturer Qorvo
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 856671-3
- Released Date Jan 21, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
856671 Details
-
Manufacturer Part Number:
856671
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, HERMETIC, CERAMIC PACKAGE-6
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Additional Feature:
TAPE AND REEL
-
Center or Cutoff Frequency (fo/fc):
897.5 MHz
-
Filter Type:
SAW FILTER
-
Height:
1.32 mm
856671 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a 50-ohm microstrip line for the RF output.
-
Use a high-impedance biasing circuit with a low-pass filter to minimize noise. Ensure the bias voltage is stable and within the recommended range (2.7-3.3V).
-
The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability.
-
Use a π-network or a T-network matching circuit to match the device's output impedance to the load impedance (typically 50 ohms).
-
Use a human-body model (HBM) ESD protection circuit with a minimum of 2 kV rating. Ensure the PCB layout and handling procedures minimize the risk of ESD damage.
Trust Checks
Expert Contribution
System Verified
Community Approved
856671 Overview

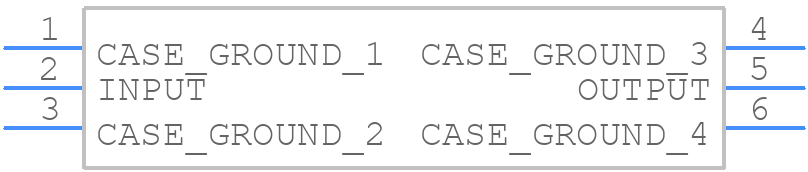

Use the download button to access the 856671 schematic symbol, PCB footprint, and 3D model.
