871S1022EKLF - Renesas Electronics

Description: IDT's PLL-based clock generators offer sub-picosecond jitter, low-skew clock outputs, and edge rates that meet the ever-growing demands of today's networking solutions. The 871S1022 is a PLL-based clock generator specifically designed for PCI Express® Clock Generation applications. The device generates 100MHz, 125MHz, 250MHz or 500MHz from either a 25MHz fundamental mode crystal or a 100MHz recovered clock. The 871S1022 has two modes of operation: (1) high frequency jitter attenuator and (2) high performanc

Download 871S1022EKLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

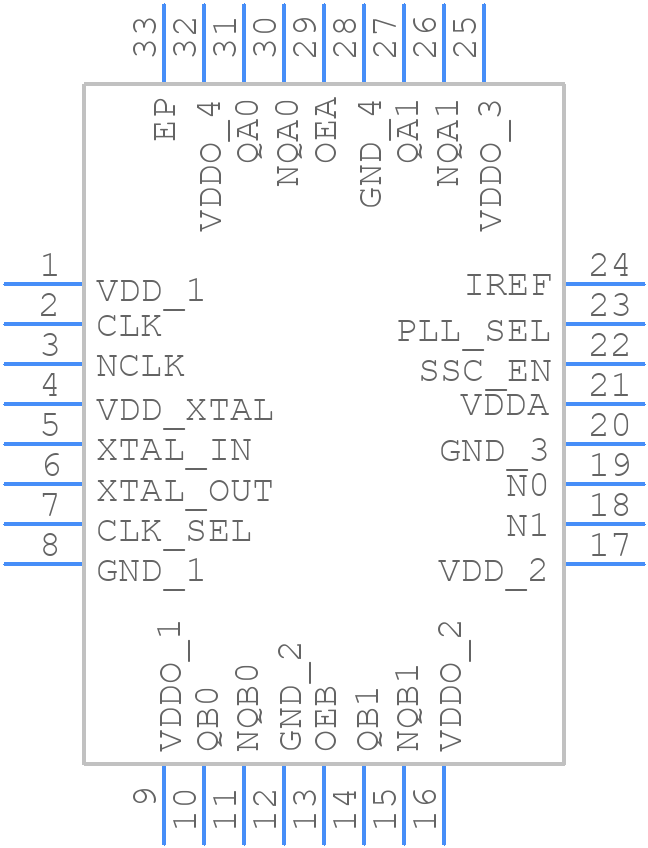

871S1022EKLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
871S1022EKLF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG32P1-
click to zoom
3D Models
871S1022EKLF - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG32P1-
click to zoom

871S1022EKLF Details

  • Manufacturer Part Number:

    871S1022EKLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    500 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER
