Description:The 874001I-05 is a high performance Jitter Attenuator designed for use in PCI Express®™ systems. In some PCI Express® systems, such as those found in desktop PCs, the PCI Express® clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter attenuator may be required to attenuate high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 874001I-05 has a bandwidth of 6MHz with <1dB peaking, easily me
For optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet, ensuring a solid ground plane, and using thermal vias to dissipate heat. Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
To ensure EMC and reduce EMI, follow the recommended PCB layout, use shielding, and implement filtering and decoupling techniques. Also, consider using a metal enclosure and ensuring proper grounding and bonding.
The recommended power-up sequence is to apply the power supply voltage (VCC) before the input voltage (VIN). For power-down, reverse the sequence. Ensure a monotonic power-up and power-down to prevent latch-up or other issues.
The 874001AGI-05LF has built-in overvoltage protection, but it's still important to implement external protection measures, such as TVS diodes or zener diodes, to prevent damage from voltage spikes or surges. Always follow the recommended operating conditions and limitations outlined in the datasheet.
The 874001AGI-05LF is designed to meet various radiation and electromagnetic susceptibility standards, such as IEC 60730 and IEC 61000. Refer to the datasheet and relevant application notes for specific details on radiation and electromagnetic susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
874001AGI-05LF Overview

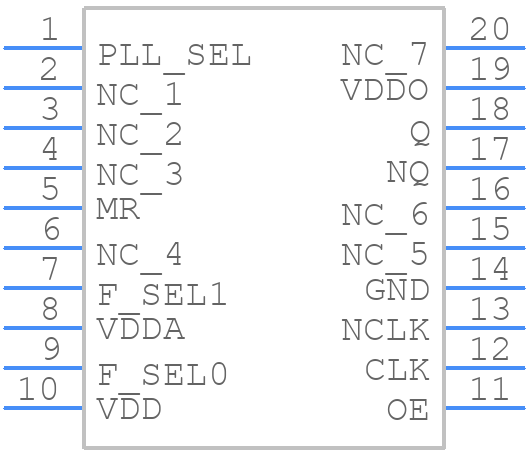

Use the download button to access the 874001AGI-05LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87400,
or try a keyword search, such as Clock Generators
