Description:The 874002 is a high performance Differential-to-LVDS Jitter Attenuator designed for use in PCI Express® systems. In some PCI Express® systems, such as those found in desktop PCs, the PCI Express® clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter attenuator may be required to attenuate high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 874002 has 3 PLL bandwidth modes: 200kHz, 400kH
Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends following their thermal design guidelines, using thermal interface materials, and ensuring proper airflow around the device. Additionally, consider using a heat sink or thermal management system to maintain a safe operating temperature.
Renesas provides power sequencing and voltage ramp-up guidelines in their datasheet and application notes. Generally, it's recommended to power up the device in a specific sequence, with a controlled voltage ramp-up rate to prevent damage or malfunction.
Renesas provides debugging tools and software, such as the Renesas Starter Kit, which includes a debugger and example code. Additionally, consult the datasheet, application notes, and online forums for troubleshooting guidance and community support.
Renesas provides radiation hardness assurance data and guidelines for using their devices in radiation-intensive environments. Consult their radiation hardness reports and application notes for specific guidance on the 874002AGLF.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
874002AGLF Overview

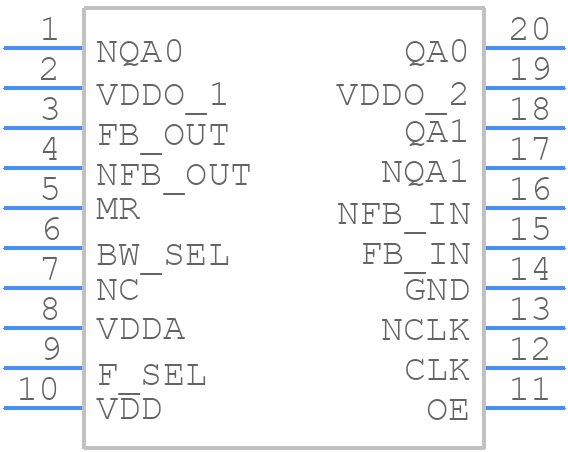

Use the download button to access the 874002AGLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87400,
or try a keyword search, such as Clock Drivers
