Description:The 874003-02 is a high performance Differential-to- LVDS Jitter Attenuator designed for use in PCI Express systems. In some PCI Express systems, such as those found in desktop PCs, the PCI Express clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter attenuator may be required to attenuate high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 874003-02 has a bandwidth of 400kHz which is d
Renesas provides a reference design guide for PCB layout and thermal management. It's recommended to follow the guidelines for optimal performance and thermal dissipation. Additionally, a thermal pad is recommended to improve heat dissipation.
Renesas recommends following the guidelines for EMC and EMI reduction in the datasheet. Additionally, using shielding, filtering, and proper grounding can help minimize EMI. It's also recommended to perform EMC testing to ensure compliance with regulatory standards.
The recommended power-up sequence is to power up the device in the following order: VCC, AVCC, and then DVCC. For power-down, the sequence should be reversed. It's also recommended to follow the power-up and power-down timing diagrams provided in the datasheet.
Renesas recommends following standard ESD handling and storage procedures, such as using anti-static bags, wrist straps, and mats. It's also recommended to follow the guidelines for ESD protection in the datasheet.
Renesas follows industry-standard quality and reliability standards, such as AEC-Q100 and ISO/TS 16949. The device is also tested and qualified according to Renesas' internal quality and reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
874003AG-02LF Overview

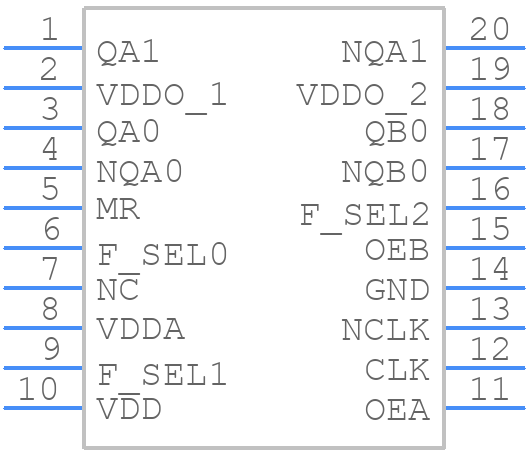

Use the download button to access the 874003AG-02LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87400,
or try a keyword search, such as Clock Generators
