874005AG-04LF - Renesas Electronics

Description: The 874005-04 is a high performance Differential- to-LVDS Jitter Attenuator designed for use in PCI Express® systems. In some PCI Express® systems, such as those found in desktop PCs, the PCI Express® clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter attenuator may be required to attenuate high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 874005-04 has 2 PLL bandwidth modes: 300kHz

Download 874005AG-04LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

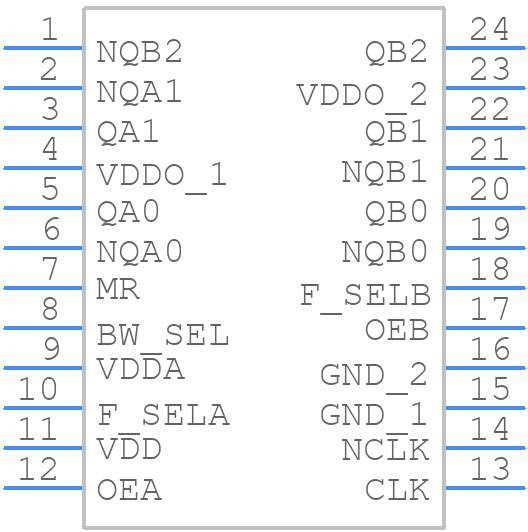

Symbol
874005AG-04LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
874005AG-04LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - G SUFFIX FOR 24 LEAD TSSOP
click to zoom

874005AG-04LF Details

  • Manufacturer Part Number:

    874005AG-04LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    PGG24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

874005AG-04LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout and thermal management guide in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
  • The 874005AG-04LF has built-in overcurrent protection, but it's recommended to implement additional external protection circuits to ensure reliable operation. Renesas provides guidance on fault detection and protection in their application notes and design guides.
  • The recommended input and output capacitors depend on the specific application and operating conditions. Renesas provides general guidelines in their datasheet, but it's recommended to consult with their application engineers or refer to their design guides for specific recommendations.
  • Renesas provides guidance on EMC and EMI reduction in their application notes and design guides. It's essential to follow proper PCB layout, grounding, and shielding techniques to minimize EMI and ensure EMC compliance.
  • Renesas provides thermal derating guidelines in their datasheet, which specify the maximum operating temperature and power dissipation limits. It's essential to follow these guidelines to prevent overheating and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

874005AG-04LF Overview

Use the download button to access the 874005AG-04LF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 87400, or try a keyword search, such as Clock Generators
