874005AGLF - Renesas Electronics

Description: The 874005 is a high performance Differential-to-LVDS Jitter Attenuator designed for use in PCI Express® systems. In some PCI Express® systems, such as those found in desktop PCs, the PCI Express® clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter attenuator may be required to attenuate high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 874005 has 3 PLL bandwidth modes: 200kHz, 400kH

Download 874005AGLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

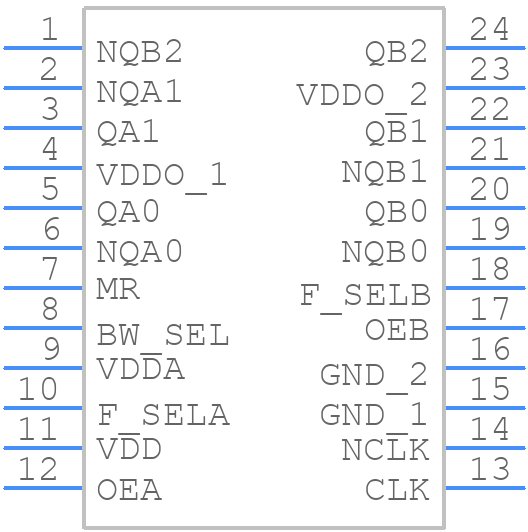

Symbol
874005AGLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
874005AGLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (TSSOP)24_
click to zoom
3D Models
874005AGLF - Renesas Electronics - 3D model - Small Outline Packages - (TSSOP)24_
click to zoom

874005AGLF Details

  • Manufacturer Part Number:

    874005AGLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    PGG24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    160 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    128 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

874005AGLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 874005AGLF, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's available on the Renesas website or through their support team.
  • Renesas recommends a specific power sequencing scheme to ensure proper startup and operation of the 874005AGLF. This information can be found in the device's application notes or through direct consultation with Renesas' support team.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, placed as close as possible to the device's power pins. The specific capacitor selection will depend on the application's requirements and operating conditions.
  • Renesas provides a troubleshooting guide for I2C interface issues, which includes steps to verify signal integrity, clock frequency, and slave address configuration. Additionally, Renesas' support team can provide further assistance and guidance.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at extreme temperatures. Consult the device's reliability report or application notes for more information on temperature-related performance degradation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

874005AGLF Overview

Use the download button to access the 874005AGLF schematic symbol, PCB footprint, and 3D model.
