8A34002PC-000NLG footprint, schematic symbol and 3D model by Renesas Electronics

8A34002PC-000NLG - Renesas Electronics

Description: The 8A34002 System Synchronizer for IEEE 1588 generates ultra-low jitter; precision timing signals based on the IEEE 1588 Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE). The device can be used as a single timing and synchronization source for a system or two of them can be used as a redundant pair for improved system reliability. Digitally Controlled Oscillators (DCOs) are available to be controlled by IEEE 1588 clock recovery servo software running on an external processor. The device suppo

Download 8A34002PC-000NLG Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

PCB Footprints

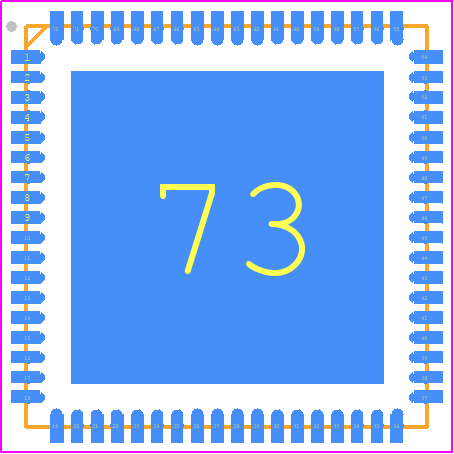

8A34002PC-000NLG - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG72P4-2

click to zoom

3D Models

8A34002PC-000NLG - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG72P4-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 8A34002PC-000NLG
Part Number 8A34002PC-000NLG
Manufacturer Renesas Electronics
Pin Count 73
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - NLG72P4-2
Released Date Apr 19, 2022
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

8A34002PC-000NLG Details

Manufacturer Part Number:
8A34002PC-000NLG
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

8A34002PC-000NLG Overview

Use the download button to access the 8A34002PC-000NLG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 8A340, or try a keyword search, such as Clock Generators
