8F8SPA28S58K40X - CONEC

Description: CONN D-SUB PLUG 8POS R/A SLDR

Download 8F8SPA28S58K40X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8F8SPA28S58K40X - CONEC - PCB symbol
click to zoom

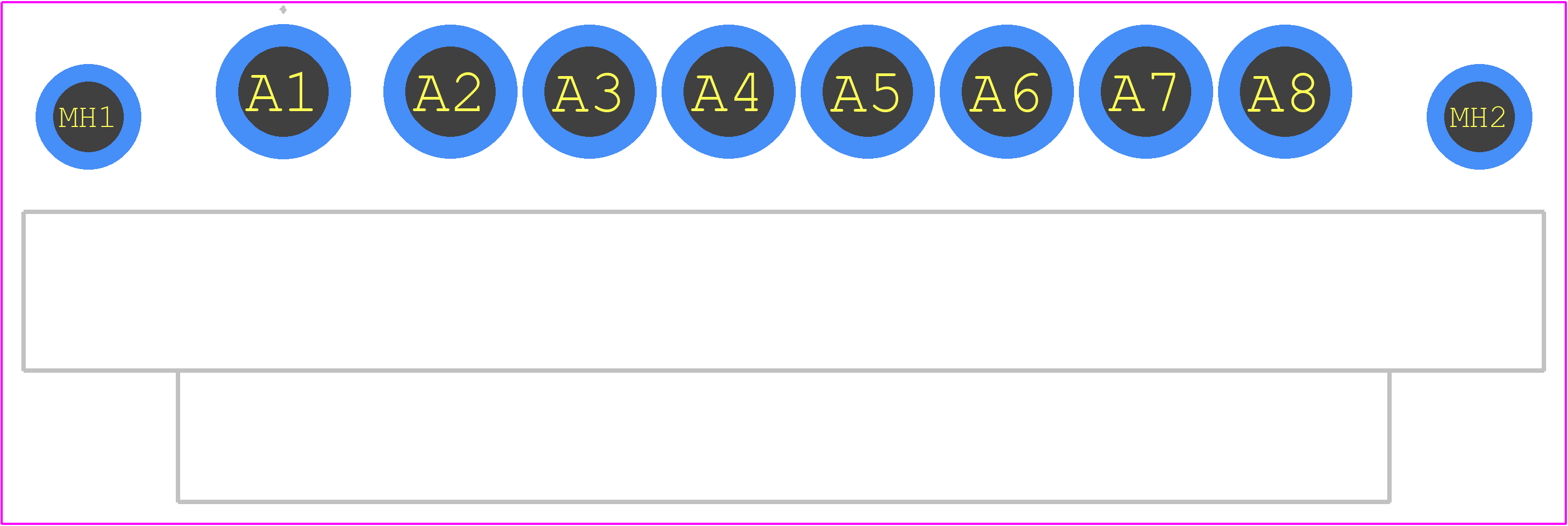

PCB Footprints
8F8SPA28S58K40X - CONEC PCB footprint - Other - Other - 8F8SPA28S58K40X-1
click to zoom
3D Models
8F8SPA28S58K40X - CONEC - 3D model - Other - 8F8SPA28S58K40X-1
click to zoom

8F8SPA28S58K40X Details

  • Manufacturer Part Number:

    8F8SPA28S58K40X

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Body Breadth:

    0.496 inch

  • Body Depth:

    0.575 inch

  • Body Length:

    2.732 inch

  • Contact Arrangement:

    S0P8

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    RND PIN-SKT

  • Durability:

    50 Cycles

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    FLASH inch

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Terminal Length:

    0.177 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

8F8SPA28S58K40X Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 8F8SPA28S58K40X is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 8F8SPA28S58K40X is designed to withstand high-vibration environments. Its rugged construction and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The 8F8SPA28S58K40X has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • The 8F8SPA28S58K40X is designed to be compatible with other manufacturers' mating connectors that meet the same industry standards (e.g., IEC 61076-3-103). However, it's recommended to verify compatibility before use.
  • The lead time for delivery of the 8F8SPA28S58K40X can vary depending on the supplier, quantity, and location. Typically, it ranges from 6-12 weeks, but it's best to check with the supplier or distributor for the most up-to-date information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8F8SPA28S58K40X Overview

Use the download button to access the 8F8SPA28S58K40X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8F8SP, or try a keyword search, such as D Type Connectors
