8G2012-Z - Nidec Copal

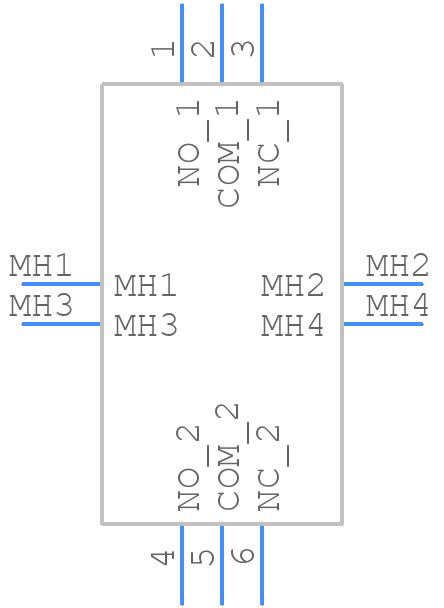

8G2012-Z Details

• Manufacturer Part Number:

  8G2012-Z

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  Nidec Copal Electronics Corporation

• YTEOL:

  8

• Actuator Length:

  0.268 inch

• Body Breadth:

  13.0048 mm

• Body Length or Diameter:

  15.7988 mm

• Bushing Length:

  0.236 inch

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  4 A

• Contact (DC) Max Rating R Load:

  4A@30VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  1500VAC V

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

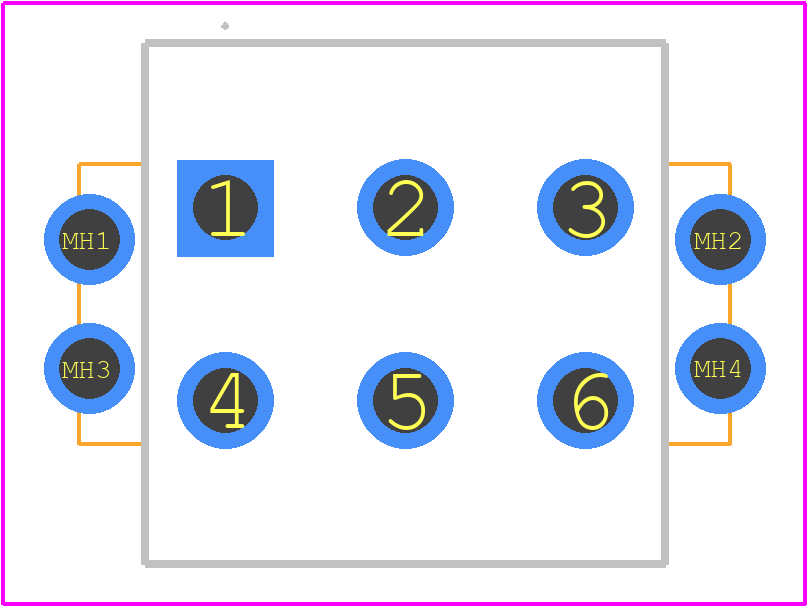

• PCB Hole Count:

  6

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.185 inch

• Termination Type:

  SOLDER
