8L30110NLGI - Renesas Electronics

Description: The 8L30110 is a low skew, 1-to-10 LVCMOS / LVTTL Fanout Buffer. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines. The 8L30110 is characterized at full 3.3V and 2.5V, mixed 3.3V/2.5V, 3.3V/1.8V, 3.3V/1.5V, .5V/1.8V and 2.5V/1.5V output operating supply modes. The input clock is selected from two differential clock inputs or a crystal input. The differential input can be wired to accept a single-ended input. The internal oscillator circuit is a

Download 8L30110NLGI Model

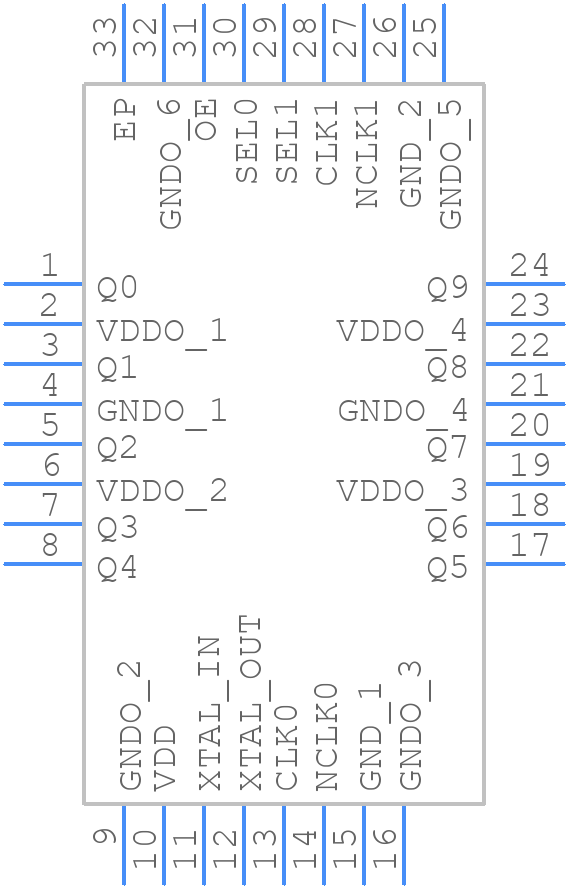

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8L30110NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG 32
click to zoom
3D Models
8L30110NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG 32
click to zoom

8L30110NLGI Details

  • Manufacturer Part Number:

    8L30110NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Additional Feature:

    ALSO OPERATE AT 3.3V SUPPLY

  • Family:

    8L3

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    22 mA

  • Prop. Delay@Nom-Sup:

    2.7 ns

  • Propagation Delay (tpd):

    4.6 ns

  • Same Edge Skew-Max (tskwd):

    0.12 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • fmax-Min:

    200 MHz

8L30110NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP6111) for the 8L30110NLGI, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Renesas recommends following the IEC 62368-1 standard for EMC compliance. Additionally, they provide guidelines for PCB layout, component selection, and shielding in their application note (AP6112) to minimize electromagnetic interference (EMI) and ensure compliance.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's power dissipation above 85°C to ensure reliable operation and prevent thermal shutdown.
  • Renesas provides a troubleshooting guide in their application note (AP6113) for issues related to the internal oscillator, including clock frequency deviation, oscillator startup failure, and noise sensitivity.
  • Renesas recommends a specific power-up sequence to ensure proper device initialization and configuration. The recommended sequence is outlined in the datasheet and application notes. A slow power-down sequence is also recommended to prevent data corruption and ensure proper shutdown.
