8LCM025P-301B-XX footprint, schematic symbol and 3D model by Multicomp Pro

Symbol

click to zoom

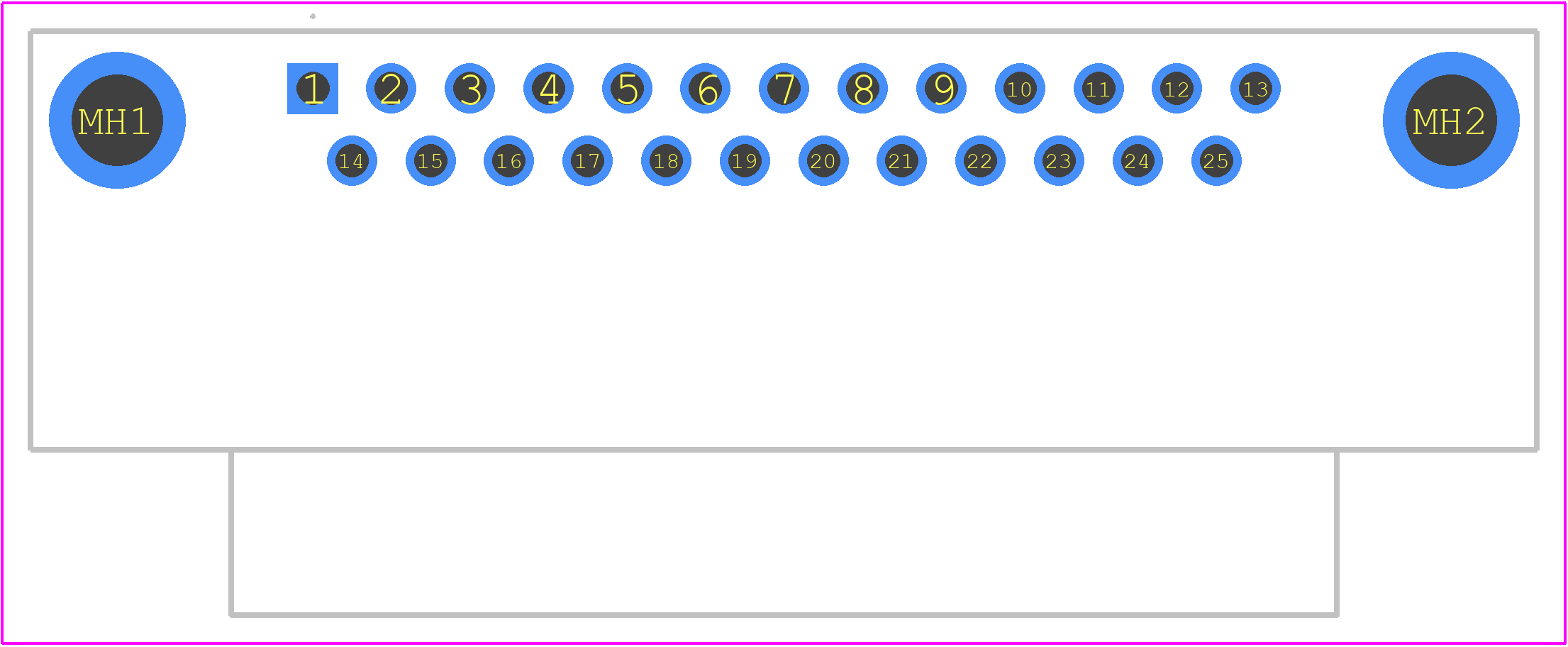

PCB Footprints

8LCM025P-301B-XX - Multicomp Pro PCB footprint - Other - Other - 8LCM025P-301B-XX

click to zoom

3D Models

8LCM025P-301B-XX - Multicomp Pro - 3D model - Other - 8LCM025P-301B-XX

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 8LCM025P-301B-XX
Part Number 8LCM025P-301B-XX
Manufacturer Multicomp Pro
Pin Count 27
Part Category Connector
Package Category Other
Footprint Name Other - 8LCM025P-301B-XX
Released Date Jan 29, 2024
Last Modified Date Mar 11, 2026 12:29 PM UTC
Pinout / Pin List Click Here (Member Only)

8LCM025P-301B-XX Details

Manufacturer Part Number:
8LCM025P-301B-XX
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
SPC Multicomp
Body Breadth:
0.494 inch
Body Depth:
0.581 inch
Body Length:
2.09 inch
Body/Shell Style:
PLUG
Contact Finish Mating:
AU ON NI
Contact Gender:
MALE
Contact Material:
BRASS
Contact Pattern:
STAGGERED
Contact Resistance:
15 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1000VAC V
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch:
0.109 inch
Mating Contact Row Spacing:
0.112 inch
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
5 A
Reference Standard:
UL
Shell Finish:
TIN
Shell Material:
STEEL
Terminal Length:
0.15 inch
Terminal Pitch:
2.7686 mm
Termination Type:
SOLDER
Total Number of Contacts:
25
