8N0QV01EH-0009CD - Renesas Electronics

Description: The 8N0QV01 is a Quad-Frequency Programmable VCXO with very flexible frequency and pull-range programming capabilities. The device uses IDT’s Fourth Generation FemtoClock® NG technology for an optimum of high clock frequency and low phase noise performance. The device accepts 2.5V or 3.3V supply and ispackaged in a small, lead-free (RoHS 6) 10-lead ceramic 5mm x 7mm x 1.55mm package. Besides the four default power-up frequencies set by the FSEL0 and FSEL1 pins, the 8N0QV01 can be programmed via the I2C inte

Download 8N0QV01EH-0009CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

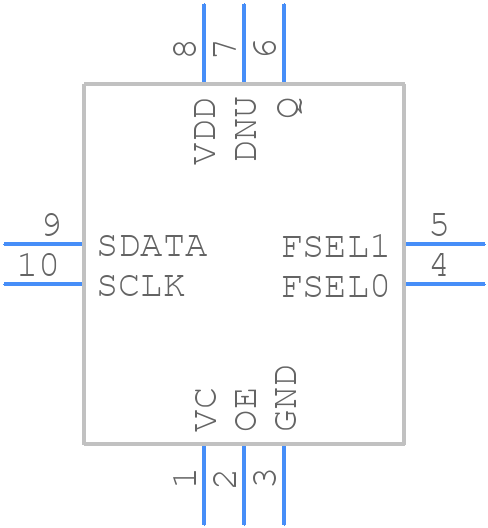

Symbol
8N0QV01EH-0009CD - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
8N0QV01EH-0009CD - Renesas Electronics PCB footprint - Other - Other - CD10
click to zoom
3D Models
8N0QV01EH-0009CD - Renesas Electronics - 3D model - Other - CD10
click to zoom

8N0QV01EH-0009CD Details

  • Manufacturer Part Number:

    8N0QV01EH-0009CD

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CLCC

  • Pin Count:

    10

  • Manufacturer Package Code:

    CD10

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION

  • Control Voltage-Max:

    3.3 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    727.5 ppm

  • Frequency Stability:

    100%

  • JESD-609 Code:

    e4

  • Linearity:

    5%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    260 MHz

  • Operating Frequency-Min:

    15.476 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS/LVTTL

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.2X.28,100

  • Physical Dimension:

    7.0mm x 5.0mm x 1.55mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    GOLD

8N0QV01EH-0009CD Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends using a thermal pad or heat sink to dissipate heat generated by the device. The datasheet provides thermal resistance values, and the application notes offer guidance on thermal management techniques.
  • The input clock signal should meet the specified frequency, amplitude, and jitter requirements outlined in the datasheet. Additionally, Renesas recommends using a clock signal with a stable frequency and minimal jitter to ensure reliable operation.
  • While the 8N0QV01EH-0009CD is a high-performance device, it is not specifically designed for radiation-hardened or high-reliability applications. Renesas offers other products that are designed for such applications, and engineers should consult with Renesas or a qualified representative for guidance.
  • Renesas recommends a specific power-up sequence to ensure proper device operation and minimize the risk of latch-up or damage. The recommended sequence is outlined in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8N0QV01EH-0009CD Overview

Use the download button to access the 8N0QV01EH-0009CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8N0QV, or try a keyword search, such as VCXO
