Description:The 8P34S1102 is a high-performance differential LVDS fanout buffer. The device is designed for the fanout of 1PPS signals or high-frequency, very low additive phase-noise clock and data signals. The 8P34S1102 supports fail-safe operation and is characterized to operate from a 1.8V or 2.5V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8P34S1102 ideal for those clock distribution applications demanding well-defined performance and repeatability. One differential inp
A good PCB layout for the 8P34S1102NLGI involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins, and use a 10kΩ resistor in series with the power supply to prevent voltage spikes.
The 8P34S1102NLGI has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating in a high-temperature environment. Also, avoid overheating the device during soldering or rework.
To configure the 8P34S1102NLGI for a specific clock frequency, use the device's register settings to select the desired frequency. Consult the datasheet for specific register settings and equations to calculate the required values. Additionally, ensure the crystal oscillator is properly selected and configured for the desired frequency.
To minimize EMI and RFI, use a shielded enclosure, keep clock traces short and away from other signals, and use a common-mode choke or ferrite bead on the clock input. Additionally, ensure the PCB layout is designed to minimize radiation and use EMI-absorbing materials if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8P34S1102NLGI Overview

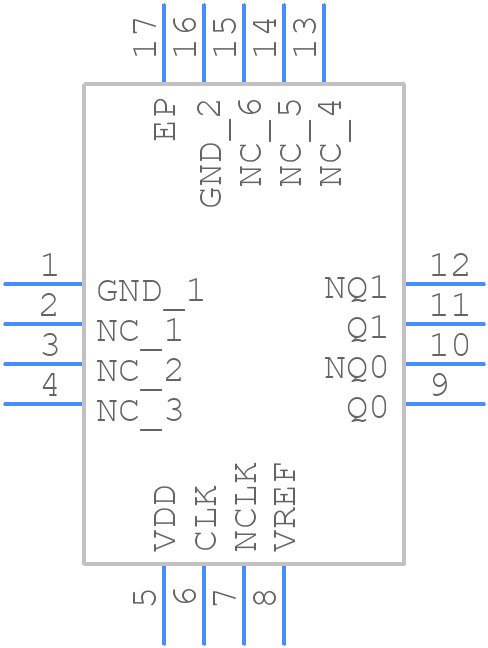

Use the download button to access the 8P34S1102NLGI schematic symbol, PCB footprint, and 3D model.
