8P34S1106NLGI - Renesas Electronics

Description: The Renesas 8P34S1106 is a high-performance differential LVDS fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The 8P34S1106 is characterized to operate from a 1.8V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8P34S1106 ideal for those clock distribution applications demanding well-defined performance and repeatability. One differential input and six low skew outputs are available. The in

Download 8P34S1106NLGI Model

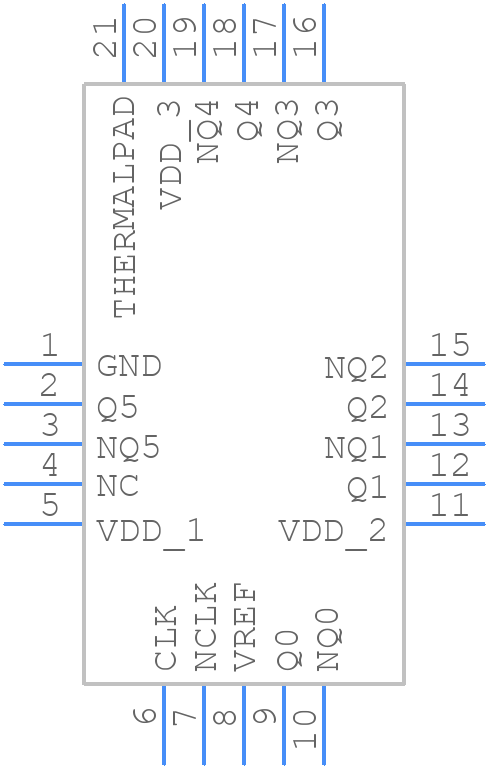

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8P34S1106NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG20P1
click to zoom
3D Models
8P34S1106NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG20P1
click to zoom

8P34S1106NLGI Details

  • Manufacturer Part Number:

    8P34S1106NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    20

  • Manufacturer Package Code:

    NLG20P1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-09-08

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Family:

    8P34

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    SERIES-RESISTOR

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    114 mA

  • Prop. Delay@Nom-Sup:

    0.4 ns

  • Propagation Delay (tpd):

    0.4 ns

  • Same Edge Skew-Max (tskwd):

    0.04 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

8P34S1106NLGI Frequently Asked Questions (FAQs)

  • A good PCB layout for the 8P34S1106NLGI involves keeping the clock input traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. Renesas provides a recommended PCB layout in their application notes.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1uF) connected between VDD and GND, and a larger capacitor (e.g., 10uF) connected between VDD and GND for bulk decoupling. Place these capacitors close to the device.
  • The maximum frequency deviation for the 8P34S1106NLGI is ±50 ppm. This means the device can tolerate a frequency deviation of up to 50 parts per million from the nominal frequency.
  • To configure the 8P34S1106NLGI for a specific output frequency, use the device's internal PLL and dividers. Consult the datasheet and application notes for specific configuration details and equations to calculate the required settings.
  • The recommended operating temperature range for the 8P34S1106NLGI is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
