8P34S1208NBGI - Renesas Electronics

Description: The 8P34S1208 is a high-performance differential LVDS fanout buffer. The device is designed for the fanout of 1PPS signals or high-frequency, very low additive phase-noise clock and data signals. The 8P34S1208 supports fail-safe operation and is characterized to operate from a 1.8V or 2.5V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8P34S1208 ideal for those clock distribution applications demanding well-defined performance and repeatability. Two selectable diffe

Download 8P34S1208NBGI Model

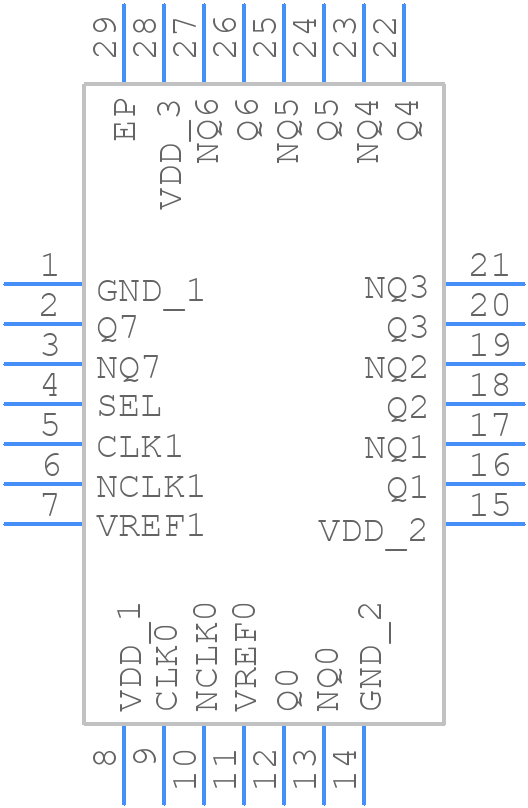

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8P34S1208NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN
click to zoom
3D Models
8P34S1208NBGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - QFN
click to zoom

8P34S1208NBGI Details

  • Manufacturer Part Number:

    8P34S1208NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    28

  • Manufacturer Package Code:

    NBG28P1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-09-08

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 2.5 V SUPPLY

  • Family:

    8P34

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N28

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    140 mA

  • Prop. Delay@Nom-Sup:

    0.4 ns

  • Propagation Delay (tpd):

    0.4 ns

  • Same Edge Skew-Max (tskwd):

    0.04 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

8P34S1208NBGI Frequently Asked Questions (FAQs)

  • A good PCB layout for the 8P34S1208NBGI involves keeping the power and ground planes separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power and decoupling, connect a 1uF capacitor between the VDD pin and the GND pin, and a 10uF capacitor between the VDD pin and the GND pin. Also, ensure that the power supply is stable and can provide the required current.
  • The 8P34S1208NBGI can operate at frequencies up to 1208 MHz, but the maximum frequency may vary depending on the specific application and system design.
  • To configure the 8P34S1208NBGI for a specific clock frequency, use the device's register settings to set the desired frequency. Refer to the datasheet for specific register settings and equations to calculate the required values.
  • To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking airflow around the device. Also, consider using thermal interface materials to improve heat transfer.
